Description

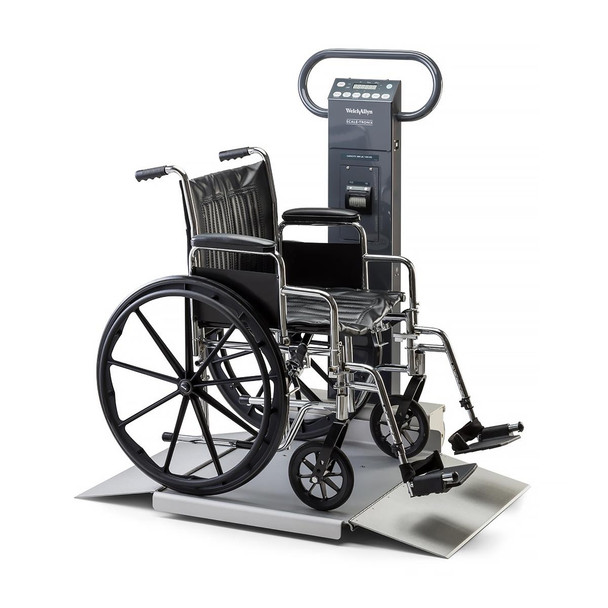

The Scale-Tronix Wheelchair Scale offers safe, high-capacity weighing for seated, standing, and wheelchair-bound patients. Featuring a 28-inch-wide low-profile platform and built-in ramps, it supports accurate, tri-function use across bariatric, rehab, and general care environments—all with cordless flexibility.
- 1,000 lb Weight Capacity – Suitable for bariatric and mobility-assisted patients.
- 28.25 in Platform Width – Ideal for standard and mid-size wheelchairs.
- Tri-Function Capability – Weighs patients in a wheelchair, chair, or standing position.
- Fixed, Low-Incline Ramps – Integrated aluminum ramps support smooth roll-on access.
- Cordless Battery Operation – Uses 6 D-cell batteries; AC power adapter optional.
- Optional Printer & Data Output – Supports thermal printing and RS-232 integration with medical systems.
Mid-Size Bariatric Platform for Flexible Clinical Weighing
The Scale-Tronix 6702 is engineered for facilities that serve patients with varying mobility needs, including those using bariatric chairs. With its mid-range width and tri-mode use, this model supports daily workflows in hospitals and long-term care. Its built-in ramps and stable platform minimize fall risk, while optional connectivity enables efficient documentation.
Features and Benefits
Tri-Function Weighing
Allows weighing in wheelchair, seated chair, or standing position—no need to transfer patients.
Low-Profile Entry Ramps
Fixed ramps ensure secure roll-on access and reduce strain on staff.
Mid-Range Platform Dimensions
28.25 in wide × 29.25 in deep, ideal for most standard or semi-bariatric wheelchairs.
Cordless for Easy Relocation
Battery operation enables in-room, hallway, or bedside use without power outlet dependency.
Optional RS-232 and Printer Support
Data integration and on-the-spot documentation improve workflow and compliance.
Clinically Proven Controls
Includes auto-zero, reweigh, recall, audible signal, and low battery alert.
Product Specifications
- Weight Capacity: 1,000 lb (454 kg)
- Platform Dimensions: 28.25 in W × 29.25 in D (71.8 × 74.3 cm)
- Ramp Height: Approx. 2.5 in with low-incline slope
- Scale Weight: Approx. 90 lb
- Display: 6-digit LED, lb/kg selectable
- Resolution: 0.1 lb / 100 g
- Power Source: 6 D-cell batteries; optional 100–240V AC adapter (hospital-grade)
- Battery Life: Up to 10,000 readings
- Connectivity: Optional RS-232 (DB9 port)
- Printer: Optional integrated thermal printer (2.25 in paper)
- Functions:
- Automatic zero
- Reweigh
- Weight recall
- Successive weighing
- Audible signal
- Low battery indicator
- Mobility: Rear-mounted wheels for tilt-and-roll transport
- Optional Accessories: Printer, height gauge, thermal paper, AC power cord
- Warranty: One-year manufacturer warranty
Why Choose Scale-Tronix Wheelchair Scale Over Other Options
This scale offers a balance of platform size, weight capacity, and mobility—ideal for facilities serving a diverse patient base.
- Mid-size platform accommodates most bariatric chairs
- Safe and accessible for seated, wheelchair, and ambulatory use
- Cordless operation supports multi-room workflows
- EHR and printer-compatible options streamline documentation
Manuals and Troubleshooting Guides
- Scale-Tronix Wheelchair Scale - Assembly Instructions
- Scale-Tronix Wheelchair Scale - Product Brochure
Frequently Asked Questions (FAQ)
What is the weight capacity of this model?
It supports up to 1,000 lb (454 kg).
Is it suitable for both wheelchair and standing patients?
Yes, it supports tri-function use: standing, seated, and in-wheelchair weighing.
Does it operate without a power outlet?
Yes, it runs on 6 D-cell batteries; a hospital-grade AC adapter is optional.
Can it transmit data to EHR systems?
Yes, via optional RS-232 output, it integrates with compatible systems.
