Description
The Scale-Tronix Bariatric Wheelchair Scale with a 35-inch super-wide platform is designed for safe, accurate weighing of patients in bariatric or powered wheelchairs. Its tri-function design, fixed ramps, and cordless power make it a dependable choice for high-mobility and bariatric care environments.
- 1,000 lb Weight Capacity – Built to support high-weight patients and mobility-assist devices
- 35 in Super-Wide Platform – Accommodates extra-large, bariatric, and powered wheelchairs
- Tri-Function Design – Enables weighing in wheelchair, seated, or stand-on modes
- Integrated Low-Incline Ramps – Fixed aluminum ramps provide safe and accessible roll-on access
- Cordless Operation – Powered by 6 D-cell batteries for mobility; AC adapter available
- Optional Printer and RS-232 Output – Supports documentation workflows and EHR system integration
Extra-Wide Platform for Bariatric and Powered Wheelchair Patients

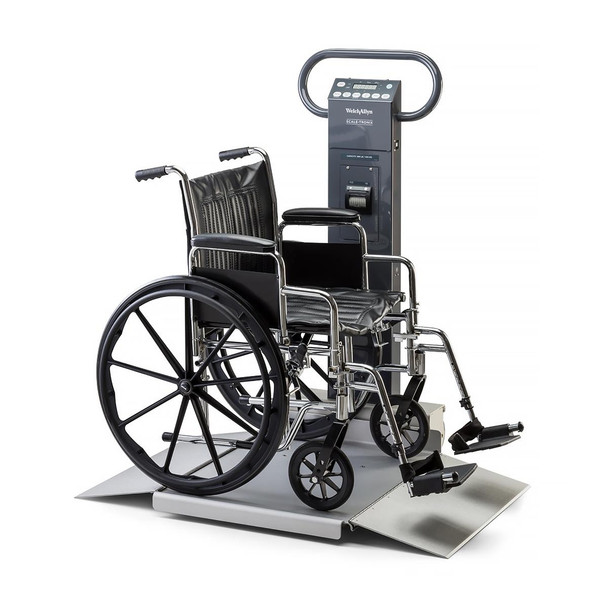

The Scale-Tronix 6702SP is engineered for bariatric and high-acuity settings where standard wheelchair scales fall short. Its 35-inch-wide platform offers superior space for powered chairs, scooters, and oversized mobility aids. With safety-enhancing features and tri-function capability, it supports a wide range of clinical use cases.
Features and Benefits
Super-Wide Platform for Enhanced Access
35 in width accommodates oversized and powered mobility devices with room to spare
Built-In Ramps with Textured Finish
Aluminum ramps are fixed and slip-resistant for smooth, safe patient entry and exit
Tri-Function Weighing Mode
Supports patients standing, seated, or in a wheelchair on one integrated platform
Cordless and Room-to-Room Capable
Operates on batteries for mobile use; optional plug-in adapter for permanent setups
Optional RS-232 and Printer Integration
Enables digital output and thermal printing for compliance and documentation

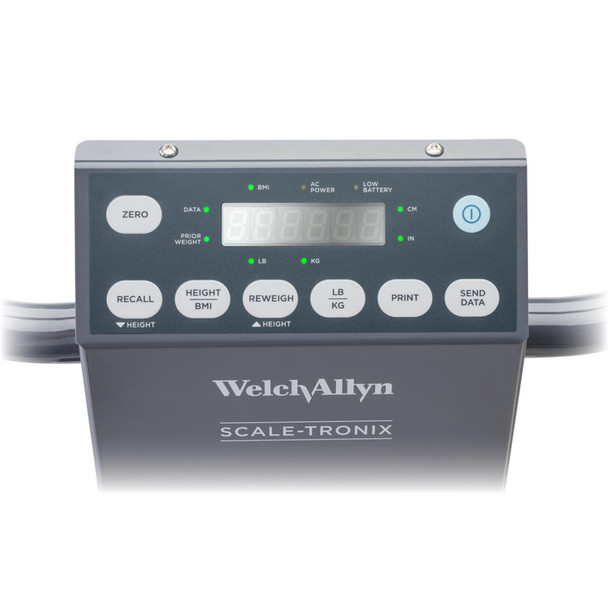

Fast, Intuitive Control Panel
Includes automatic zero, reweigh, recall, and audible signal for confirmation
Product Specifications
- Weight Capacity: 1,000 lb (454 kg)
- Platform Dimensions: 35 in W × 29.75 in D (88.9 × 75.6 cm)
- Ramp Height: Approx. 2.5–3 in with low-incline slope
- Scale Weight: Approx. 90 lb
- Display: 6-digit LED, dual-unit lb/kg
- Resolution: 0.1 lb / 100 g
- Power Source: 6 D-cell batteries; optional 100–240V AC adapter
- Battery Life: Up to 10,000 readings
- Connectivity: Optional RS-232 serial output (DB9)
- Printer Option: Integrated thermal printer available; uses 2.25 in thermal paper
- Functions:
- Automatic zero
- Reweigh
- Weight recall
- Successive weighing
- Audible confirmation signal
- Low battery alert
- Mobility: Rear wheels for tilt-and-roll movement
- Optional Accessories: Printer, thermal paper, AC line cord, wall-mounted height gauge
- Warranty: One-year manufacturer warranty
Why Choose Scale-Tronix Bariatric Wheelchair Scale Over Other Options
The 6702SP is the go-to scale for bariatric patients with powered mobility needs. Its oversized platform, safe entry ramps, and smart functions make it ideal for high-dependency clinical settings.
- Supports large and powered wheelchairs with 35 in platform
- Cordless and mobile for flexible clinical use
- Tri-function use reduces need for multiple devices
- Optional EHR integration and printing for clinical compliance
Manuals and Troubleshooting Guides
- Scale-Tronix Wheelchair Scale - Assembly Instructions
- Scale-Tronix Wheelchair Scale - Product Brochure
Frequently Asked Questions (FAQ)
What type of wheelchairs does this model accommodate?
The 35 in platform supports powered, bariatric, and large-frame wheelchairs.
What is the weight capacity of this scale?
This model supports up to 1,000 lb (454 kg).
Does it require installation or mounting?
No, it is a portable, self-contained unit with built-in ramps.
Can it connect to EHR systems or print weight results?
Yes, RS-232 and printer options are available for full documentation support.
