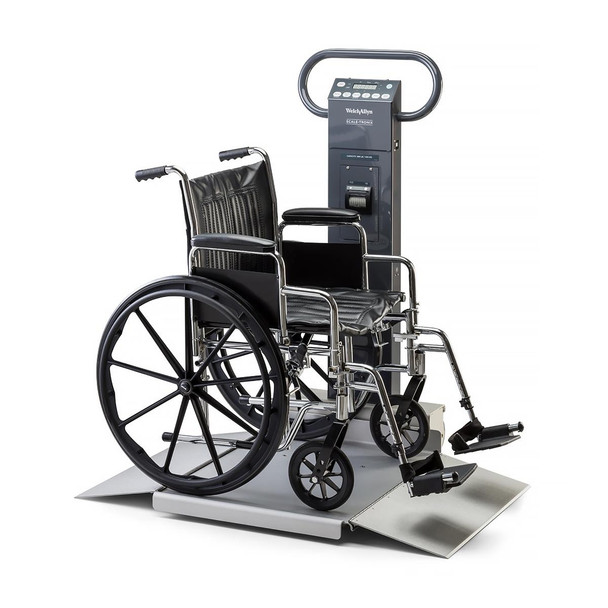

The Scale-Tronix Wheelchair Scale provides accessible, high-capacity weighing for patients who use wheelchairs, chairs, or require stand-on support. Designed with built-in ramps and a low-profile platform, this tri-function scale promotes safety, accuracy, and flexibility in hospitals, rehabilitation centers, and long-term care settings.
- 880 lb Weight Capacity – Supports standard wheelchairs, transport chairs, and ambulatory patients.
- Tri-Mode Functionality – Accommodates wheelchair, chair, and stand-on use to meet diverse patient needs.
- Integrated Low-Incline Ramps – Allows smooth roll-on access, reducing strain on patients and staff.
- Cordless Operation – Powered by 6 D-cell alkaline batteries; AC adapter available.
- Compact Footprint – Fits well in tight rooms and hallways while maintaining access for mobility devices.
- Optional Handrails and Printer – Add-ons available for added support and documentation.
- Data Output (Optional) – RS-232 port enables electronic health record (EHR) integration.
Accessible and Versatile Weighing for Clinical Mobility Support
The Scale-Tronix Wheelchair Scale (Model 6002) is ideal for patients unable to use traditional stand-on platforms. Its low-profile, ramped design makes entry and exit smooth and safe, while the electronic LED display and optional connectivity provide clinicians with fast, reliable readings. Lightweight and cordless, it’s suitable for frequent relocation between rooms.
Features and Benefits
Tri-Function Platform for Greater Flexibility
Weighs patients in a wheelchair, seated in a chair, or standing on the platform without transferring between devices.
Low Ramps Enhance Safety and Access
Built-in aluminum ramps reduce the need for lifting, supporting both bariatric and mobility-impaired patients.
Compact, Cordless Operation
Fully powered by 6 D-cell batteries, allowing mobile deployment with no outlet dependency.
Optional RS-232 Output and Printer
Enables EHR data transfer and thermal printouts on supported models for seamless recordkeeping.

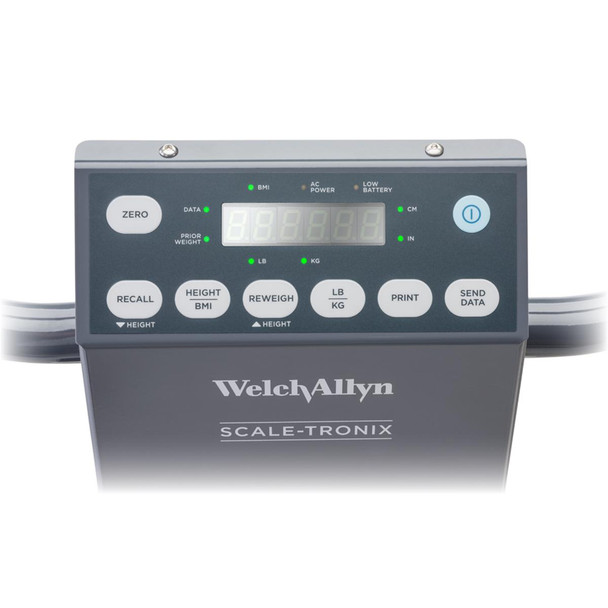

Simple Controls and Repeat Functions
Features include auto-zero, weight recall, reweigh, and an audible signal confirming weight capture.
Product Specifications
- Weight Capacity: 880 lb (400 kg)
- Platform Dimensions: 24 in W × 26 in D (60.96 × 66.04 cm)
- Ramp Height: Approx. 2 in (with low-incline slope)
- Scale Weight: 78 lb (35.4 kg)
- Display: LED, 6-digit, lb/kg toggle
- Resolution: 0.1 lb / 100 g
- Power Source: 6 D-cell alkaline batteries; optional AC adapter (100–240V)
- Battery Life: Up to 10,000 readings per battery set
- Connectivity: Optional RS-232 (DB9 female port)
- Printer: Optional integrated thermal printer; accepts 2.25 in paper
- Construction: Powder-coated steel platform with aluminum ramps
- Mobility: Rear wheels for repositioning
- Functions:
- Automatic zero
- Weight recall
- Reweigh
- Successive weighing
- Audible weight confirmation
- Low battery indicator
- Optional Accessories:
- Printer
- Thermal paper
- Wall-mounted height gauge
- Handrails
- Line cord power supply
- Warranty: One year manufacturer warranty
Why Choose Scale-Tronix Wheelchair Scale Over Other Options?
This model’s tri-function design and compact profile make it ideal for mixed mobility needs in any care setting. Whether weighing patients in wheelchairs or while standing, it offers consistent accuracy and effortless use.
- Built for standard wheelchairs and chair-based weighing
- Tri-mode function supports full ambulatory spectrum
- Compact, cordless, and mobile
- Integrates with EHR systems and print documentation workflows
Manuals and Troubleshooting Guides
- Scale-Tronix Wheelchair Scale - Assembly Instructions
- Scale-Tronix Wheelchair Scale - Product Brochure
Frequently Asked Questions (FAQ)
Can it weigh patients in both wheelchairs and chairs?
Yes, the platform supports wheelchair, chair, and stand-on weighing.
What is the weight capacity?
This model supports up to 880 lb (400 kg).
Does it require a wall outlet?
No, it operates on 6 D-cell batteries; a power cord is available if needed.
Is it compatible with EHR systems?
Yes, models with RS-232 output can transmit data to connected devices.
