Description
The Diagnostix 5481 Portable PMV Otoscope Set shows the ear canal the way wall systems promise and pocket scopes rarely deliver: a panoramic view with twice the field and 66 percent greater magnification than a standard otoscope. Its rechargeable 3.5V handle runs 6.5 hours on LED, so the set works a full clinic day untethered.
- PMV panoramic optics – An 11 mm field of view at 5X magnification, twice the field and 66 percent more magnification than ADC's standard otoscope.
- Fiber-optic illumination – Light transmission leaves the view unobstructed, with reflection-optimized high-performance glass optics.
- Rechargeable Li-ion handle – The 1400 mAh C-sized handle delivers 2.5 hours of xenon or 6.5 hours of LED use per charge.
- Adtronic rheostat control – Electronic light control adjusts intensity continuously and switches off automatically after two minutes.
Panoramic Ear Exams in a Padded Soft Case

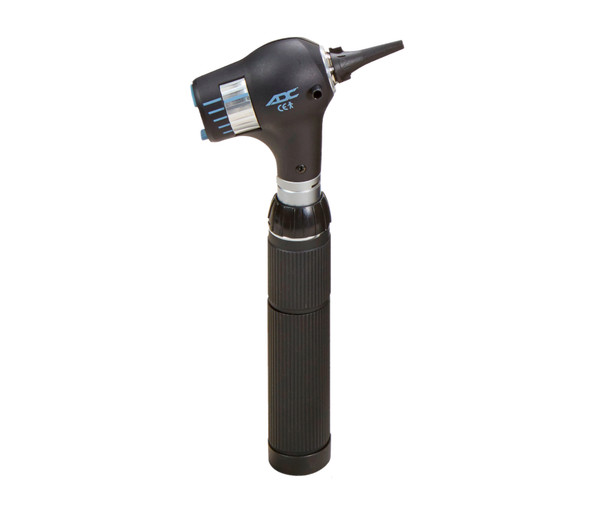

This portable set pairs the 3.5V PMV otoscope head with a plug-in rechargeable Li-ion battery handle in a zippered, padded nylon case. The PMV head's advanced optics significantly improve the view of the auditory canal and tympanic membrane, with adjustable focal depth for the examiner's eye. The handle is CNC machined from solid brass, chrome plated in black with a ribbed grip, and its top half unscrews to access the US wall plug for charging. A universal bayonet mount keeps the handle compatible with other brands of 3.5V instrument heads, and an anti-theft locking feature is standard on the head. ENT-focused clinicians, audiologists, and diagnosticians who grade their ear exams carefully get wall-class optics in a carry case.
Features and Benefits
PMV Otoscope Head
- Panoramic magnified view – 11 mm field of view and 5X magnification reveal more canal and drum per placement.
- High-performance glass optics – Reflection-optimized optics with adjustable focal depth, made in Germany.
- Procedure-ready – Suitable for throat illumination and pneumatic otoscopy (insufflator sold separately), and compatible with Welch Allyn specula.
Rechargeable Handle
- 1400 mAh Li-ion battery – C-sized handle provides up to 6.5 hours of LED use or 2.5 hours of xenon use per charge.

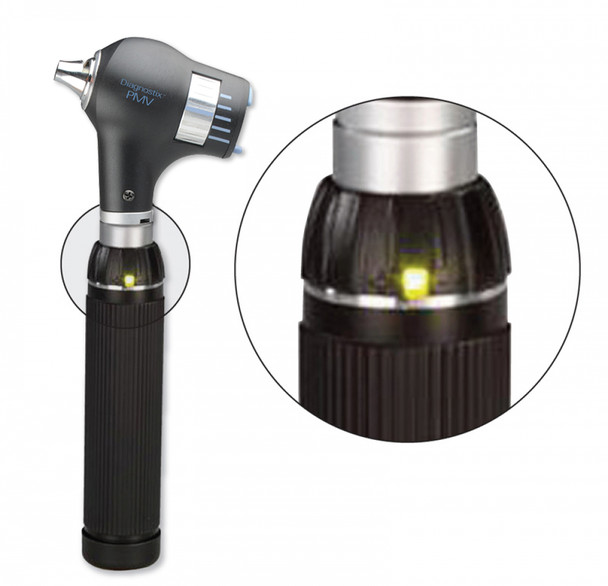

- Adtronic rheostat – Electronic control gives infinite continuous intensity adjustment with a two-minute auto-off.
- Kit contents – Five each of 2.75 mm and 4.25 mm disposable specula in a tube, plus the padded soft case.
Product Specifications
Optics
- Field of view – 11 mm
- Magnification – 5X
- Illumination – Xenon or high-performance LED (4,200 Kelvin, CRI 92)
Power and Coverage
- Battery – 1400 mAh Li-ion, plug-in rechargeable (US wall plug)
- Runtime – 2.5 hours xenon, 6.5 hours LED
- Origin – Head made in Germany, inspected, assembled, and packaged in the USA
- Warranty – Five-year warranty on the instrument, lifetime warranty on the AdLED lamp
Browse the full range in our Otoscopes department for comparable instruments. The ADC brand page gathers this maker's complete catalog in one place.
Why Choose This Portable Otoscope Set
Standard otoscopes show a keyhole. The PMV head shows the room. Twice the field of view changes what an examiner can catch at the canal wall and drum periphery, and the rechargeable handle keeps that view available all day. For clinicians whose referrals and diagnoses start with the ear exam, the optical upgrade is the entire argument.
- Twice the field of view – The 11 mm panoramic view is the headline differentiator over standard otoscopes.
- All-day cordless power – Six and a half hours of LED runtime covers a full clinic without a charge.
- Cross-brand handle – The universal bayonet mount accepts other brands' 3.5V heads, protecting existing investments.
- Five-year plus lifetime cover – Five years on the instrument and life on the AdLED lamp is top-tier backing.
Manuals and Troubleshooting Guides
Frequently Asked Questions
LED or xenon: which lamp should I choose?
The LED lamp runs 6.5 hours per charge and carries a lifetime warranty, rendering at 4,200 Kelvin with a CRI of 92. Xenon runs 2.5 hours and suits clinicians who prefer its traditional light character.
How does the PMV view compare to a standard otoscope?
The PMV head provides twice the field of view and 66 percent greater magnification: an 11 mm field at 5X. Adjustable focal depth fine-tunes the image to the examiner.
How is the handle charged?
The handle's top half unscrews to reveal a US wall plug for direct charging of its 1400 mAh Li-ion battery. An EU-compatible plug option exists in the line.
What specula does it use?
The set includes five each of 2.75 mm and 4.25 mm disposable specula, and the head is compatible with Welch Allyn specula. An anti-theft locking feature is standard.
What warranty applies?
The instrument carries a five-year warranty and the AdLED lamp a lifetime warranty. Protection follows the original retail purchaser from the day of delivery.
