Description
The Diagnostix 752M rolls the 6-inch luminescent clock dial to whichever bed needs it, on a height-adjustable Spider-Leg stand that spans 34 to 48 inches. It gives wards and clinics one precision station that travels, instead of a portable gauge that disappears.
- Mobile Spider-Leg stand – Five casters on an 18-inch base, two with locking brakes, roll the station room to room and park it firmly.
- Angled luminescent dial – The manometer tilts back 15 degrees under a 6-inch luminescent face for easy viewing at the bedside.
- Height adjustable – The stand adjusts from 34 to 48 inches, matching bed and chair heights across the unit.
- Lifetime calibration warranty – Calibration coverage never expires, with three-year coverage on the system and cuffs.
A Clock Aneroid Station That Comes to the Patient
This mobile aneroid mounts the Diagnostix clock gauge on a height-adjustable Spider-Leg caster stand with a cuff storage basket. The gauge angles back 15 degrees, and its 6-inch luminescent dial with a winter white wraparound bezel stays readable in virtually any light. The precision 300 mmHg Japanese-engineered manometer uses a no-pin stop movement built to withstand the heaviest use. The Adcuff inflation system includes a nylon cuff, Adflow bulb and valve, and 8 feet of coiled tubing when extended, with a filter screen valve reducing dust build-up. Wards, step-down units, and clinics that share one station across rooms get accuracy that travels under control.
Features and Benefits
Mobile Stand

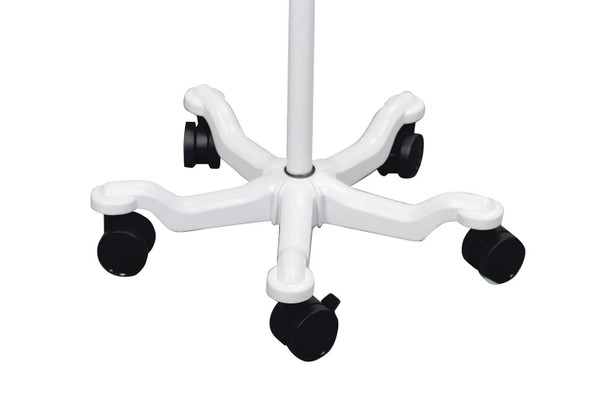

- Spider-Leg caster base – The 18-inch base rides on five black casters, two with locking brakes for a stable park.
- 34 to 48 inch adjustment – Stand height adjusts to the bed or chair, and the basket and all assembly hardware are included.
Clock Gauge and System

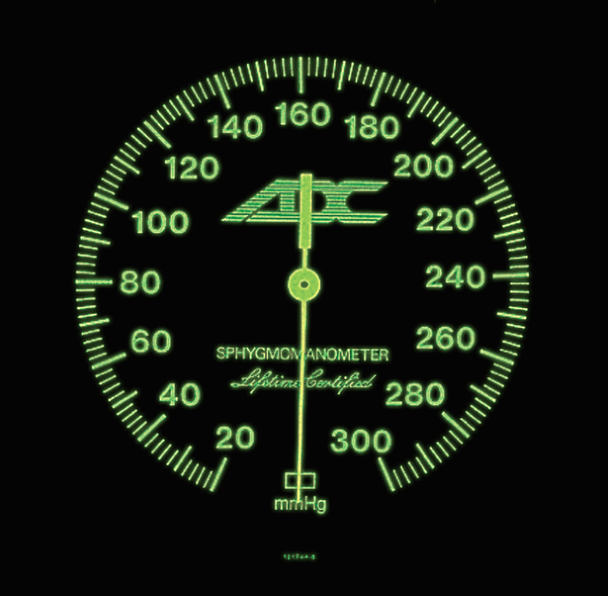

- Angled 6-inch dial – The luminescent face tilts back 15 degrees for bedside reading angles.
- No-pin stop movement – The Japanese-engineered 300 mmHg manometer is precision crafted for heavy institutional use.
- Adcuff inflation system – Nylon cuff, Adflow bulb and valve, and 8-foot coiled tubing complete the station.
Product Specifications
Standards
- Compliance – Meets or exceeds ANSI/AAMI/ISO 81060-1
- Manometer – 300 mmHg, Japanese engineered, no-pin stop movement
- Origin – Assembled, inspected, and packaged in the USA from foreign components
Stand and Coverage
- Stand height – Adjustable 34 to 48 inches, 18-inch base, five casters (two locking)
- Latex and phthalate content – Made without phthalates or natural rubber latex
- Warranty – Three-year warranty with lifetime calibration warranty
Keep comparing inside the Manual Blood Pressure Monitors section if you are outfitting a room. The ADC brand page rounds up the maker's full assortment.
Why Choose This Mobile Aneroid
Shared portable gauges fail wards in predictable ways: they migrate, they drop, and nobody owns their calibration. A mobile station with locking casters and lifetime calibration coverage stays a unit asset instead of a rumor. The angled luminescent dial then makes the reading itself easier to take correctly at any bed.
- Travels under control – Five casters with two locking brakes move the station deliberately, not accidentally.
- Fits every bed height – A 34 to 48 inch adjustment range covers beds, chairs, and stretchers.
- Lifetime calibration – Calibration coverage never expires for the original purchaser.
- Complete station – Stand, basket, gauge, cuff system, and hardware arrive together, with some assembly required.
Manuals and Troubleshooting Guides
Frequently Asked Questions
How tall does the stand adjust?
The Spider-Leg stand adjusts from 34 to 48 inches, measured from the bottom of the base to the top of the unit. The base spans 18 inches on five casters.
Do the casters lock?
Yes, two of the five casters have locking brakes. The station rolls freely between rooms and parks firmly at the bedside.
What cuff and tubing are included?
The Adcuff inflation system includes a nylon adult cuff, Adflow bulb and valve, and 8 feet of coiled tubing when extended. A cuff storage basket is also included.
Is assembly required?
Some assembly is required, and all necessary hardware and assembly instructions are included. The gauge itself arrives ready to mount on the stand.
What warranty applies?
The system carries a three-year warranty and the manometer carries a lifetime calibration warranty. Protection follows the original retail purchaser from the day of delivery.
