Description

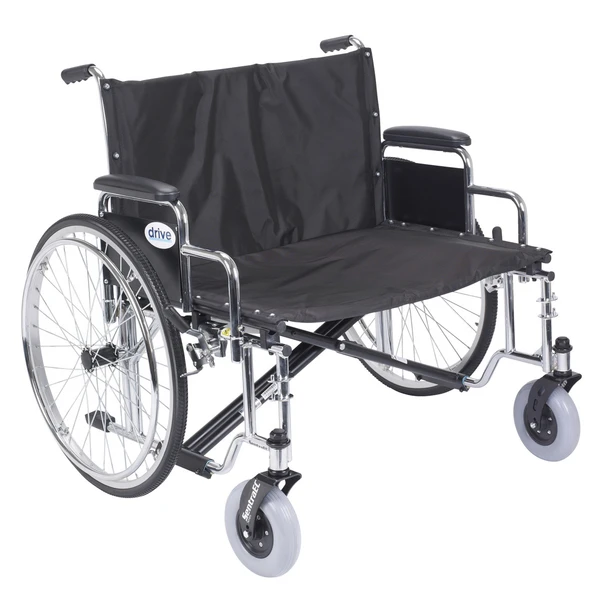

The Drive Sentra EC Extra-Extra-Wide Bariatric Wheelchair is the chair for riders every standard line leaves out — seats up to a true 30 in wide and a frame rated to 700 lb, reinforced at every point that carries weight. Desk-length arms let you pull up to tables and counters, and Drive sells this class the way facilities buy it: as the base chair, with front riggings ordered separately so you fit exactly the footrests or elevating legrests the rider needs. If you have been told to "look at reinforced models," this is the reinforced model.
- 700 lb capacity on a reinforced carbon steel frame — the top of Drive's Sentra line
- Seat widths of 26 in, 28 in and 30 in with a 20 in depth
- Desk-length armrests, detachable, extra-large padded
- Base chair sold without front riggings — add Drive PH-SF footrests or PHELR elevating legrests to fit the rider
- Triple-coated chrome finish over steel spoke wheels and heavy-duty flat-free casters
Built for Riders Standard Chairs Turn Away
Most bariatric chairs top out at 450 or 500 lb and 24 in of seat. This extra wide wheelchair starts where they stop. The carbon steel frame adds reinforced gussets at every weight-bearing point, a reinforced side frame, caster journals and dual cross bars, and extra-heavy-duty front forks — structure you can feel the first time you sit down: no flex, no creak, no negotiation. The triple-coated chrome finish shrugs off daily knocks, and the reinforced nylon upholstery is made for real-world use, year after year. Desk-length arms keep tables and work surfaces within reach, then detach for side transfers.
Features and Benefits
Frame Strength and Capacity
- Reinforced Carbon Steel Frame – Triple-coated chrome finish with steel gussets at all weight-bearing points, rated to a 700 lb weight capacity.
- Reinforced Side Frame and Cross Bars – Reinforced caster journals and dual cross bars keep the chair tracking straight under load.
- Push-to-Lock Wheel Locks – A secure hold that keeps the chair steady for safer transfers.
Seating Comfort and Fit
- Reinforced Nylon Upholstery – Durable, easy to maintain, and built for daily heavy-duty use.
- Extra-Large Padded Desk Armrests – Desk-length arms for close table access, detachable for side transfers, sized for bigger riders.
- Sold Without Front Riggings – Drive sells this class as the base chair; fit Drive PH-SF swing-away footrests or PHELR elevating legrests (sold separately) to match the rider.
Wheels, Casters, and Bearings
- Steel Spoke Wheels – Heavy-duty wheels built for the 700 lb class.

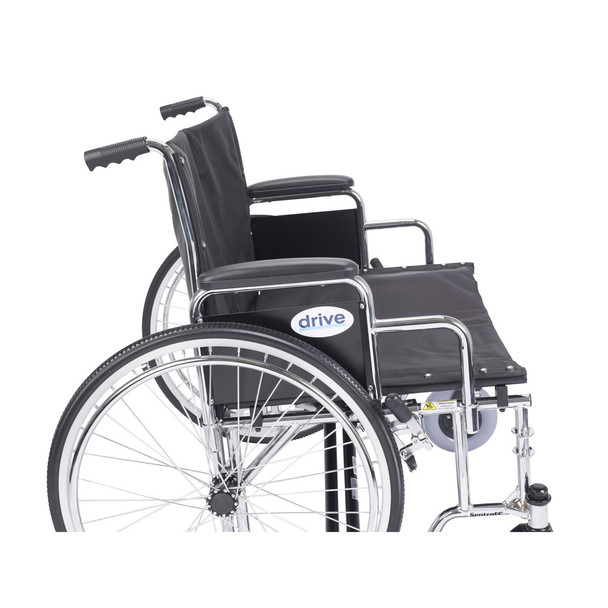

- Heavy-Duty Flat-Free Front Casters – 8 in casters adjustable in two positions, never a flat to strand you.
- Sealed Precision Bearings – Smooth roll with minimal upkeep, front and rear.
Product Specifications
Dimensions and Weights
- Seat Width Options: 26 in (66 cm), 28 in (71.1 cm), 30 in (76.2 cm)
- Seat Depth: 20 in (50.8 cm)
- Seat-to-Floor Height: 19.5 in (49.5 cm)
- Overall Length (with riggings): 43 in (109.2 cm)
- Overall Height: 35 in (88.9 cm)
- Width Open: 34.5 in (87.6 cm) for 26 in; 37 in (94 cm) for 28 in; 39 in (99.1 cm) for 30 in
- Width Closed: 14 in (35.6 cm) for 26 in; 14.5 in (36.8 cm) for 28 in; 15 in (38.1 cm) for 30 in
- Back Height: 18 in (45.7 cm)
- Product Weight: 62 lb (28.1 kg) for 26 in; 64 lb (29 kg) for 28 in; 66 lb (29.9 kg) for 30 in
- Carton Shipping Weight: 68 lb (30.8 kg) for 26 in; 70 lb (31.8 kg) for 28 in; 72 lb (32.7 kg) for 30 in
Capacity and Construction
- Weight Capacity: 700 lb (317.5 kg)
- Frame: Carbon steel, triple-coated chrome finish
- Upholstery: Reinforced nylon, black
- HCPCS Code: K0007
Running Gear
- Wheels: Steel spoke
- Front Casters: 8 in (20.3 cm) flat-free, adjustable in two positions
- Bearings: Sealed precision
- Wheel Locks: Push-to-lock
Warranty and Configuration
- Warranty: Limited lifetime (per Drive)
- Armrests: Extra-large padded, desk-length, detachable
- Front Riggings: Not included — Drive PH-SF swing-away footrests or PHELR elevating legrests sold separately
- Warranty Terms: Defects are covered by repair or replacement at Drive's option; misuse, negligence, and normal wear are excluded, and rubber accessories, casters, and grips are wear items outside the warranty (owner's manual).
Shopping the wider range? Compare this chair with our other wheelchairs, browse all mobility aids for transfer and daily-living support, or read our wheelchair buying guide.
Why Facilities Start Here for Their Largest Riders
When a facility's biggest standard chair is not big enough, this is the next call — and for a home rider, it is usually the last chair they have to buy. Genuine 700 lb structure, seats up to 30 in, and the freedom to fit the exact riggings the rider needs.
- 700 lb Rating – The highest capacity in the Sentra line — no rider turned away on spec.
- Seats to 30 Inches – Widths that actually fit larger bodies, with a 20 in deep seat.
- Reinforced Everywhere It Matters – Gussets, cross bars, journals and forks all up-sized for the class.
- Riggings Your Way – Order the base, then fit footrests or elevating legrests to the rider — not the other way around.
Manuals and Troubleshooting Guides
Frequently Asked Questions
What is the weight capacity of this chair?
It is rated to 700 lb — the highest in Drive's Sentra line — on a reinforced carbon steel frame with a triple-coated chrome finish.
Does it include footrests or legrests?
No. Drive sells this class as the base chair without front riggings, so the rider can be fitted with the right ones: Drive PH-SF swing-away footrests or PHELR elevating legrests, sold separately.
Which seat widths does this listing offer?
26 in, 28 in, and 30 in seats, all with desk-length detachable armrests and a 20 in seat depth.
How much does the chair weigh?
62 lb in the 26 in size, 64 lb at 28 in, and 66 lb at 30 in. Folded width is 14 to 15 in depending on seat width.
How do I adjust the wheel locks?
Engage both locks before transfers. Per the owner's manual, the lock shoe must embed the tire by at least 1/8 in when engaged: slide the clamp toward the rear wheel while the handle is in the locked position, tighten the carriage-bolt nut, and test the hold before use.
What maintenance does this chair need?
Minimal by design: wipe the tires occasionally with a damp cloth and replace them if severely worn or cracking; inspect the front casters periodically and lubricate the stem and wheel bearings occasionally, tensioned so there is no play yet the wheels roll freely.
What warranty does it carry?
Drive lists a limited lifetime warranty for this model.
