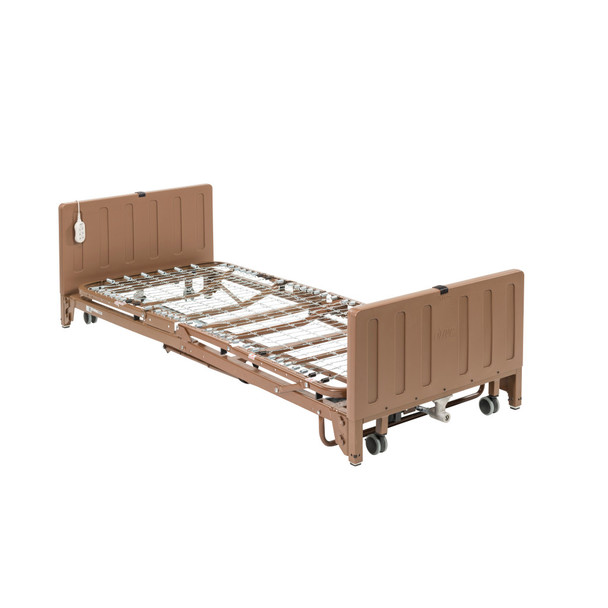

The Drive Full Electric Low Height Bed is Drive's Premier homecare bed: a three-motor, full-electric design whose motors arrive pre-installed on the foot section — no motor assembly at setup — and whose deck lowers to 9.25 inches in its low configuration.
- Three motors: head, foot and height, with motors pre-installed — no assembly required
- Deck lowers to 9.25 in (roll-at-low-height) for fall-risk care
- Auto Contour raises head and foot together to reduce lower-back and sacral shearing
- Manual crank override covers adjustments during a power failure
- Patient capacity 350 lb; total capacity 450 lb including mattress and accessories

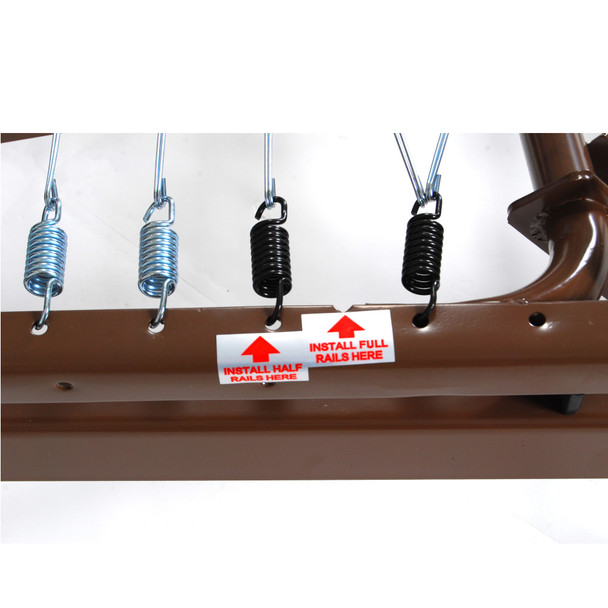

- Available with no rails, half rails or full rails — choose on this page; mattress sold separately
Three Motors, Fitted Before It Ships

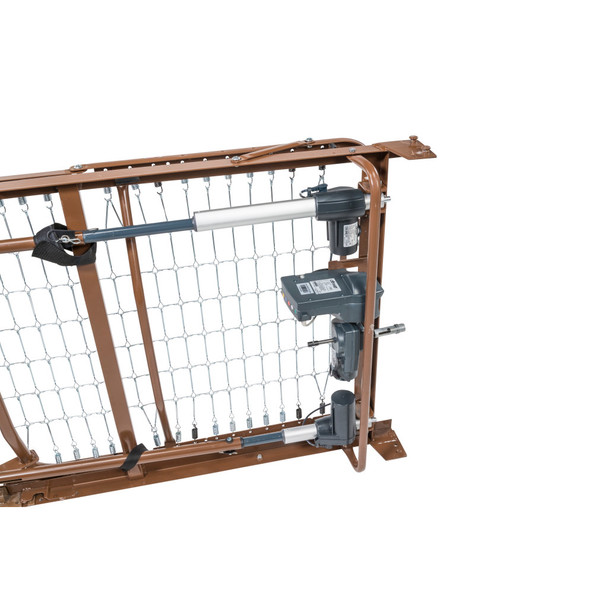

Most homecare beds make you mount the motors. On the Drive Full Electric Low Height Bed, the height-adjustment and head/foot motors come pre-installed on the foot section, an industry-standard three-motor power plant Drive describes as a workhorse. The long-lasting zinc-coated spring deck sits in a channel frame reinforced against twisting and bending, and the heavy-duty bed ends wear molded polyethylene covers with a headboard taller than the footboard. In the roll-at-low-height caster configuration the deck runs from 9.25 to 23 inches; in roll-at-any-height configuration, from 14.81 to 23 inches.
Features and Benefits
Power and Positioning

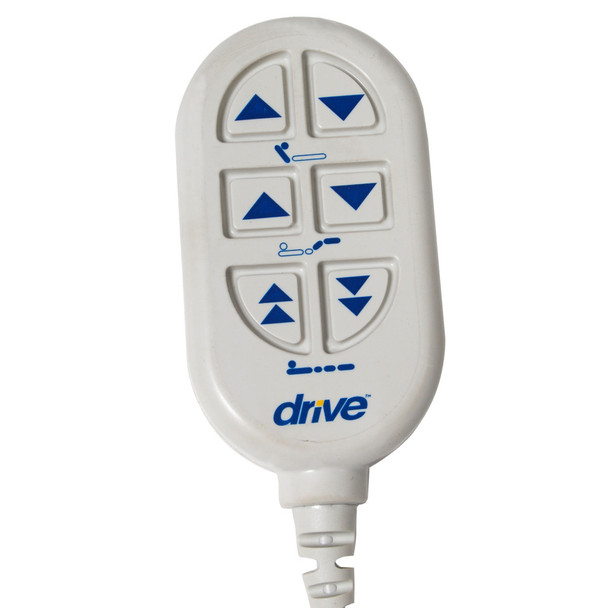

- 3-motor full electric – head, foot and height from the hand pendant, motors pre-installed on the foot section
- Auto Contour – raises the head and foot simultaneously to help prevent lower-back and sacral shearing

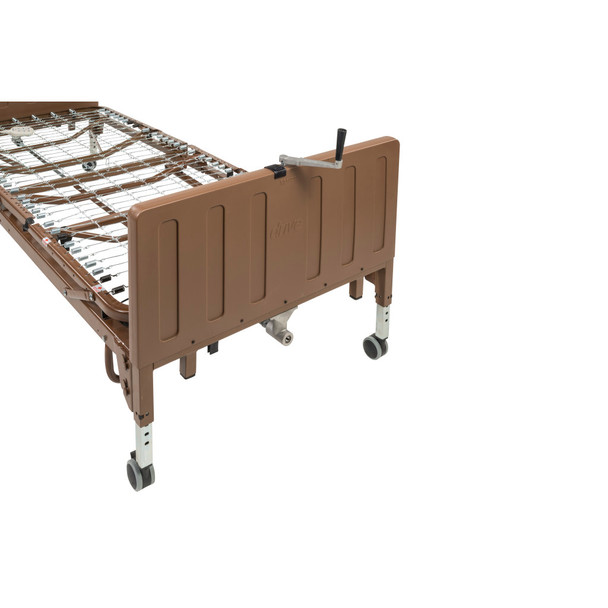

- Manual crank override – top-mounted Hi/Lo crank access plus a crank override of sleep-surface adjustments if power fails
Frame and Deck
- Reinforced channel frame – built to resist twisting and bending under daily repositioning
- Zinc-coated spring deck – long-lasting sleep surface
- Heavy-duty bed ends – molded HD polyethylene covers; headboard taller than the footboard
Product Specifications
Heights, Capacity and Weights
- Deck Height (roll at low height): 9.25 to 23 in (235 to 585 mm)
- Deck Height (roll at any height): 14.81 to 23 in (376 to 585 mm)
- Patient Weight Capacity: 350 lb
- Total Weight Capacity: 450 lb including occupant, mattress, rails and accessories
- Product Weight: 169 lb
- Carton Shipping Weight: 184 lb, ships in 2 cartons
Warranty
- Warranty: Limited Lifetime on welds | 5 years on frame, motor and pendant | 1 year on all other parts and components
- Length Extension: optional 15005EXTKIT-L extends the frame from 80 in to 84 in (sold separately)
Pair the bed with one of our mattresses, compare other hospital beds, or browse the wider medical furniture range at MedicalEx.
Why Choose the Drive Full Electric Low Height Bed?
Choose it for the setup you do not have to do: the motors are already mounted, the three-motor system is the strongest in Drive's homecare line, and Auto Contour protects skin every time the back rest rises. Add the 9.25-inch low position for fall-risk patients and a crank override instead of a battery to babysit, and this is the low bed for people who want facility-grade mechanics at home. MedicalEx ships it in two cartons.
Manuals and Troubleshooting Guides
Frequently Asked Questions
Do the motors need to be assembled?
No. The height-adjustment and head/foot motors come pre-installed on the foot section — that is this bed's signature convenience.
Is a mattress or rails included?
The mattress is never included. Rails depend on the option you choose on this page — None ships as the bare bed, or pick Half or Full rails.
What is Auto Contour?
Auto Contour raises the head and foot sections simultaneously, which helps prevent the sliding that causes lower-back and sacral shearing when only the back rest is raised.
What happens during a power failure?
There is no battery to maintain: a top-mounted crank gives manual override of the height and sleep-surface adjustments until power returns.
How much weight can the bed hold?
The patient capacity is 350 lb, and the total capacity is 450 lb — that total includes the occupant, mattress, rails, trapeze and accessories.
How low does the deck go?
To 9.25 inches in the roll-at-low-height caster configuration (14.81 inches minimum in roll-at-any-height configuration), up to 23 inches.
What does the warranty cover?
Limited Lifetime on welds, 5 years on the frame, motor and pendant, and 1 year on all other parts and components.
