Description

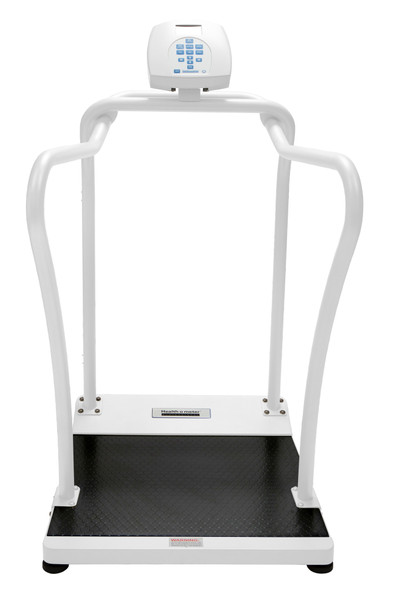

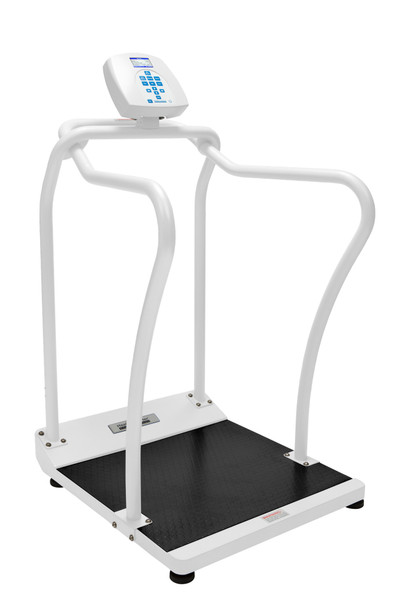

Health O Meter 2101KL The Certified ADA Compliant 2101KL is a comprehensive bariatric scale that supports up to 1000 pounds and provides the optimum in quality, reliability, and ease of use. The scale’s robust 4-point handrail design provides support for patients who need extra stability, allowing them to hold on securely while the scale delivers accurate weight measurements. Designed to meet the needs of doctor’s offices, hospitals, clinics, and acute and long-term care facilities, the scale’s keypad features antimicrobial protection, a display head that swivels 180°, a large slip-resistant low-profile platform, and wheels that enable portability. It offers a 1000 lb / 454 kg capacity with 0.2 lb / 0.1 kg resolution, so hospitals and high-volume clinics can weigh with confidence at every visit.
- EMR Connectivity – The scale can interface with a computer, EMR software, or other electronic devices via various Health o meter Professional Connectivity Solutions.
- Antimicrobial Keypad – The keypad features antimicrobial protection.
- “Live” Handrails – The scale’s robust 4-point handrail design provides support for patients who need extra stability, allowing them to hold on securely while the scale delivers accurate weight measurements.
- Capacity Range – 1000 lb / 454 kg capacity with 0.2 lb / 0.1 kg resolution.
- Easy-Read Display – 1 ½” / 38 mm High-Contrast Color TFT-LCD Screen, easy to read at the point of care.
- Flexible Power – Runs on 100-240v adapter (adpt30) included, 6 d batteries not included, keeping setup simple.
Main Description – High-Capacity Platform Weighing
This platform scale is designed for hospitals and high-volume clinics. Its 1000 lb / 454 kg capacity and 0.2 lb / 0.1 kg resolution cover routine and higher-weight patients without changing equipment. Built-in functions include LB/KG conversion, LB/KG lock out, BMI, Zero, Tare, which keeps the weighing workflow quick and consistent. Power comes from 100-240V adapter (ADPT30) included, 6 D batteries not included, so the unit fits rooms with or without a free outlet nearby. The manufacturer documentation for this model is linked on this page, so setup and operating details come straight from the source.
Features and Benefits
Workflow and Supply
- Onboard Functions – Onboard functions include LB/KG conversion, LB/KG lock out, BMI, Zero, Tare, Pre-tare, Hold/release, Reweigh, Recall, Auto zero, Auto off, Time/date, Variable auto off time, Audible/mute sound option, Parent/child weighing function, Everlock®.
Product Specifications
Product Details
- Brand – Health O Meter
- Model – 2101KG, 2101KGHR, 2101KL, 2101KLHR
- Product Type – Platform scale
- Warranty – 2-year limited manufacturer warranty
Technical Specifications
- Capacity – 1000 lb / 454 kg
- Resolution – 0.2 lb / 0.1 kg
- EMR connectivity – Via USB, optional Pelstar®wireless technology
- Display – 1 ½” / 38 mm High-Contrast Color TFT-LCD Screen
- Power Source – 100-240V adapter (ADPT30) included, 6 D batteries not included
- Platform Size (w x d x h) – 26” x 22” x 2 ⅜” (660 mm x 559 mm x 60 mm)
- Product Footprint (w x d x h) – 31” x 27” x 50” (787 mm x 686 mm x 1270 mm)
- Product Weight – 66 lb / 30 kg
- Portability – 2 wheels for ease of movement
Options and Packaging
- Configurations – 5 configurations. Each option is one genuine manufacturer model with its own SKU and price.
- Packaging – Packaging: Sold individually.
See all products in this category or browse the full Health O Meter range.
Why Choose This Platform scale
Health O Meter builds the Health O Meter 2101KL for hospitals and high-volume clinics. With the genuine manufacturer product, the capacity, features and documentation are exactly what the manufacturer publishes. MedicalEx shows each real configuration with its own SKU and price, which keeps ordering exact from selection to delivery.
- Capacity Headroom – A 1000 lb / 454 kg capacity means one scale covers more of the patient population, which reduces transfers to a second scale.
- Less Time Weighing – A clear display and the documented function set cut the time each weighing takes, which keeps the day moving.
- Antimicrobial Protection – Antimicrobial protection on this model helps the surfaces stand up to busy clinical use between cleanings.
- Exact Model Matching – Each option is one genuine manufacturer model with its own SKU, so the configuration selected is exactly the one that ships.
- Backed by Documents – Manufacturer documents linked on this page back the purchase, so setup and service information stays within reach.
Manuals and Troubleshooting Guides
Frequently Asked Questions
What is the weight capacity of this platform scale?
The capacity is 1000 lb / 454 kg with a resolution of 0.2 lb / 0.1 kg. That range covers the patients this scale is made for, and the exact figure is confirmed in the specifications above.
Which configuration should I order?
This listing offers 5 genuine manufacturer configurations, and each option shows its own model code in the option label. Pick the configuration that matches the room and patient population, and the SKU and price shown are for that exact model.
How is this product sold and packaged?
Packaging for this listing: Sold individually. The price applies to the package exactly as sold, and the configuration selected is the configuration that ships.
How is this product powered?
Power source: 100-240V adapter (ADPT30) included, 6 D batteries not included. That gives flexibility at setup, and the operating details are covered in the manufacturer documentation linked on this page.
What warranty covers this product?
This model carries a 2-year limited manufacturer warranty. The warranty terms are set by the manufacturer, and the documentation linked on this page explains how coverage applies.
What does the display show?
The display is a 1 ½” / 38 mm High-Contrast Color TFT-LCD Screen. Readings are shown at the point of care, and the full display specification is listed in the specifications above.
What functions does this product have?
Built-in functions include LB/KG conversion, LB/KG lock out, BMI, Zero, Tare, Pre-tare. The complete function list for this configuration appears in the Features and Benefits section above.
