Description

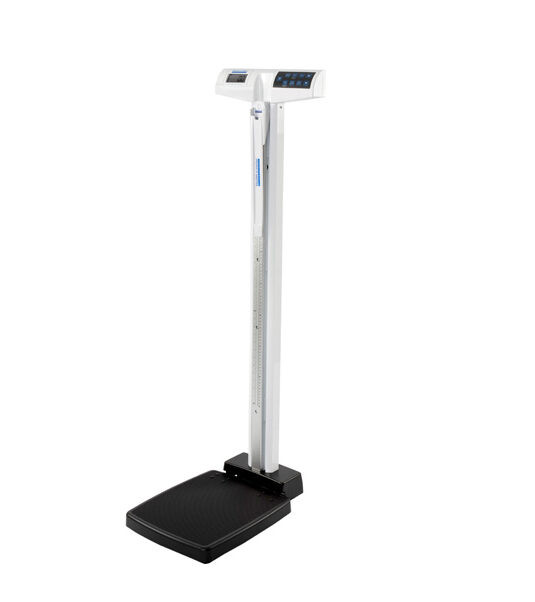

Health O Meter 502KL The newest member of the number-one-selling family of physician scales, the all-digital Health o meter 502KL features a fully integrated digital height rod and EMR capabilities, providing the optimum in quality, reliability, and ease of use. The 502KL, created to cater to various healthcare settings like doctor’s offices, hospitals, clinics, and acute and long-term care facilities, showcases a market-leading built-in digital height rod, a spacious non-skid platform, and a reinforced base that ensures enhanced stability. The scale offers providers and patients an eye-level weight indicator, accommodating patients weighing up to 660 pounds. It offers a 660 lb / 300 kg capacity with 0.2 lb / 0.1 kg resolution, so facilities that run Health o meter scales can weigh with confidence at every visit.

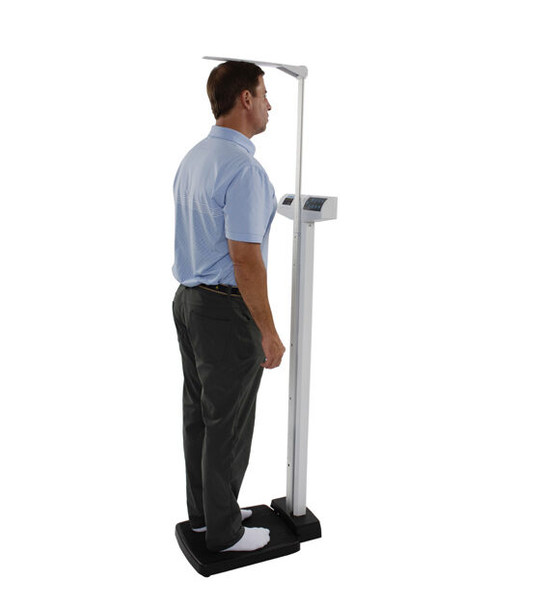

- State-of-the-art Digital Height Rod – The market-leading height rod provides the most accurate height measurement in its class, with a graduation/resolution of 1mm/0.1” and a full measuring range of 11 ¾” – 79 ½” / 30cm – 202cm and a digital range of 3ft 11.2” – 6ft 7.5”/ 120 cm – 202 cm.
- EMR connectivity – Via optional Pelstar wireless technology.

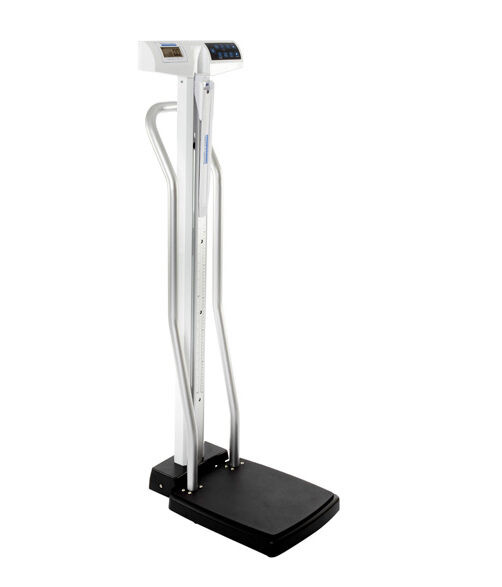

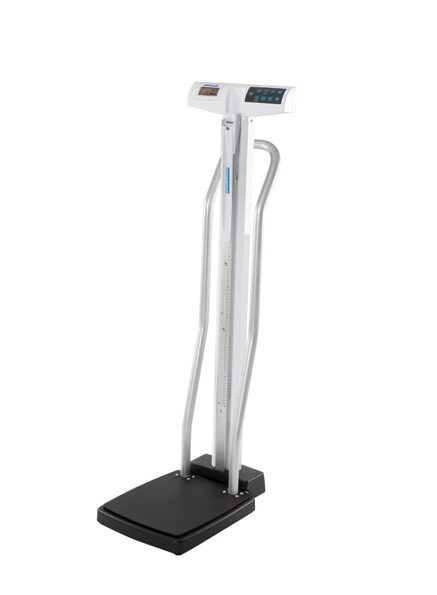

- Optional “Live” Wrap Around Handlebars - 500HB – Provide stability without affecting accuracy or weight reading.
- Dent/Rust Proof Low Profile Platform – Low platform height requires only a minimal step up, offering a patient a more comfortable and stable weighing experience.
- Everlock (patent pending) – Option that allows users to permanently lock the scale in either LB or KG to improve safety.
- Capacity Range – 660 lb / 300 kg capacity with 0.2 lb / 0.1 kg resolution.
Main Description – The Right Accessory for Your Scale
This scale accessory is designed for facilities that run Health o meter scales. Its 660 lb / 300 kg capacity and 0.2 lb / 0.1 kg resolution cover routine and higher-weight patients without changing equipment. Built-in functions include LB/KG conversion, LB/KG lock out, BMI, Zero, Tare, which keeps the weighing workflow quick and consistent. The manufacturer documentation for this model is linked on this page, so setup and operating details come straight from the source. Supply is straightforward, with packaging stated in the specifications and the price covering the package exactly as sold.
Features and Benefits
Design and Performance
- Improves Patient Experience – Improves Patient Experience – Helps patients with poor or impaired balance maintain stability when standing on the platform.
- Accommodates Patients of – Accommodates Patients of Any Height – Wrap-around design allows patients of any height to comfortably hold the handlebars.
- Easy-Read Display – 1” / 25 mm, LCD display, easy to read at the point of care.
Workflow and Supply
- Onboard Functions – Onboard functions include LB/KG conversion, LB/KG lock out, BMI, Zero, Tare, Pre-tare, Hold/Release, Auto Zero, Auto-Off, Reweigh, Recall, Parent/Child weighing function, Everlock® – permanent unit lock.
Product Specifications
Product Details
- Brand – Health O Meter
- Model – 502KG, 502KL
- Product Type – Scale accessory
- Warranty – 2-year limited manufacturer warranty
Technical Specifications
- Capacity – 660 lb / 300 kg
- Resolution – 0.2 lb / 0.1 kg
- EMR connectivity – Via optional Pelstar® wireless technology
- Display – 1” / 25 mm, LCD display
- Batteries – 6 AA batteries included, optional adapter (order# ADPT31)
- Platform Size (w x d x h) – 13 ¾” x 16 ½” x 2 ⅜” (349 mm x 419 mm x 60 mm)
- Product Footprint (w x d x h) – 14 ⅜” x 21 ⅛” x 53 ⅝” (359 mm x 537 mm x 1362 mm)
- Product Weight – 21 lb / 9 kg
- Portability – 2 wheels, wide 8” wheelbase for ease of movement
Options and Packaging
- Configurations – 4 configurations. Each option is one genuine manufacturer model with its own SKU and price.
- Packaging – Packaging: Sold individually.
See all products in this category or browse the full Health O Meter range.
Why Choose This Scale accessory
Health O Meter builds the Health O Meter 502KL for facilities that run Health o meter scales. Choosing the genuine manufacturer product means the capacity, features and documentation match what the manufacturer publishes. MedicalEx lists every real configuration with its own SKU and price, so the model ordered is the model that arrives.
- Capacity Headroom – A 660 lb / 300 kg capacity means one scale covers more of the patient population, which reduces transfers to a second scale.
- Faster Workflows – Documented functions and a clear display shorten each weighing, which keeps intake and rounds on schedule.
- Genuine Configurations – Every listed option is a genuine manufacturer configuration with its own SKU, so there are no made-up combinations at checkout.
- Supported Purchase – MedicalEx supports the order with the manufacturer documentation linked on this page, which makes setup and service questions easier to resolve.
Manuals and Troubleshooting Guides
Frequently Asked Questions
What is the weight capacity of this scale accessory?
The capacity is 660 lb / 300 kg with a resolution of 0.2 lb / 0.1 kg. That range covers the patients this scale is made for, and the exact figure is confirmed in the specifications above.
Which configuration should I order?
This listing offers 4 genuine manufacturer configurations, and each option shows its own model code in the option label. Pick the configuration that matches the room and patient population, and the SKU and price shown are for that exact model.
How is this product sold and packaged?
Packaging for this listing: Sold individually. The price applies to the package exactly as sold, and the configuration selected is the configuration that ships.
What warranty covers this product?
This model carries a 2-year limited manufacturer warranty. The warranty terms are set by the manufacturer, and the documentation linked on this page explains how coverage applies.
What does the display show?
The display is a 1” / 25 mm, LCD display. Readings are shown at the point of care, and the full display specification is listed in the specifications above.
What functions does this product have?
Built-in functions include LB/KG conversion, LB/KG lock out, BMI, Zero, Tare, Pre-tare. The complete function list for this configuration appears in the Features and Benefits section above.
Who is this scale accessory designed for?
It is designed for facilities that run Health o meter scales. The design and capacity follow the manufacturer specification, so it fits the workflow it was built for.
