Description

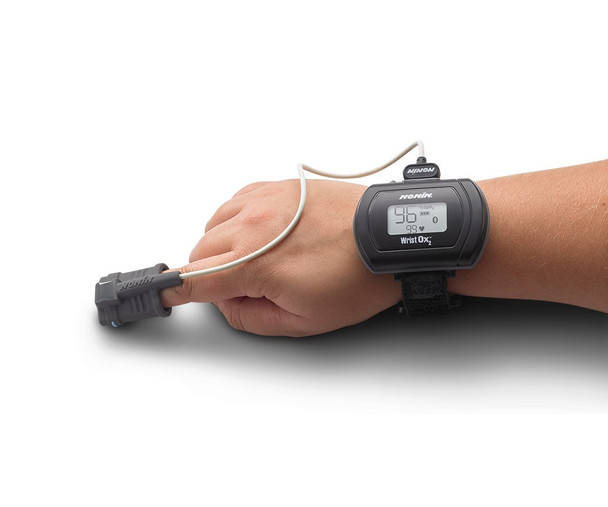

Nonin WristOx2 3150 USB Wrist-Worn Pulse Oximeter with 1080 Hour Memory for Ambulatory Studies
The Nonin WristOx2 3150 USB is a wrist-worn pulse oximeter that records up to 1,080 hours of oximetry for ambulatory and overnight studies. It weighs just 2.5 ounces on the wrist and downloads by USB, so patients can wear it for days while the data stays secure in non-volatile memory.
- Up to 1,080 hours of non-volatile memory at a 4 second sampling rate
- Variable sampling at 1, 2 or 4 seconds captures rapid saturation changes
- Only 2.5 ounces with batteries and wrist band for multi day wear
- USB download with nVISION software compatibility
WristOx2 3150 USB Wrist-Worn Oximetry for Ambulatory and Sleep Studies
Overnight oximetry and ambulatory assessment need a recorder patients will actually keep wearing, and this wrist-worn unit was designed around that compliance problem. At 2.5 ounces with batteries and its wrist band, the device stays unobtrusive through sleep, exercise testing and daily activity. Memory capacity reaches 1,080 hours at a four second sampling rate, with one and two second rates available when a study needs finer resolution. PureSAT processing maintains accuracy in motion, which matters for stress applications such as the six minute walk test. Data downloads over USB for analysis in nVISION, and the non-volatile memory keeps recorded studies safe even if battery power is lost. Configurations range from a device only assembly to complete kits with each of the five PureLight WO2 sensor types.
Features and Benefits
Recording Platform
- 1,080 Hour Memory – non-volatile storage holds long studies at a 4 second sampling rate.
- Variable Sampling Rates – one, two or four second rates match resolution to the study protocol.
- USB Data Transfer – recorded data downloads to a PC for nVISION review and reporting.
Wearability
- 2.5 Ounce Wrist Design – the light wrist worn format supports compliance across multi day studies.
- PureSAT Motion Performance – readings remain dependable during activity and stress testing.
- WO2 Sensor Family – five 16-pin PureLight sensor types cover clip, flex and soft preferences.
Product Specifications
Performance
- Oxygen Saturation Range: 0 to 100% SpO2
- Pulse Rate Range: 18 to 321 beats per minute
- Memory: Up to 1,080 hours at 4 second sampling, 540 hours at 2 seconds, 270 hours at 1 second
- Ingress Protection: IP33, Type BF applied part
Power, Size and Warranty
- Battery: Two AAA 1.5V batteries
- Dimensions: 2.9 in W x 2.0 in H x 0.75 in D (73 x 51 x 19 mm), without sensor or wrist band
- Weight: 2.5 oz (70 g) with batteries and wrist band
- Warranty: 3-year manufacturer warranty
See all Handheld Pulse Oximeters for the full range, or Shop more Nonin Products for the complete line.
Why Sleep and Ambulatory Programs Choose the WristOx2 3150 USB
A recorder only helps if the patient tolerates it for the whole study. This unit pairs the lightest wrist format in its class with memory deep enough that studies rarely need mid course downloads.
- Higher Study Completion – the light wrist worn design and soft sensor options support overnight and multi day wear.
- No Lost Studies – non-volatile memory protects recorded data even when batteries run down.
- Protocol Flexibility – three sampling rates let one device serve screening and detailed studies.
- Established Analysis Path – USB download into nVISION keeps reporting inside a familiar workflow.
Manuals and Troubleshooting Guides
Frequently Asked Questions (FAQs)
How much data can the WristOx2 3150 USB store?
Memory holds up to 1,080 hours at a four second sampling rate, 540 hours at two seconds and 270 hours at one second. The memory is non-volatile, so data survives battery loss.
What is the difference between the configurations?
The device only configuration ships without a sensor, while the other configurations add one PureLight WO2 sensor each, in medium soft, finger clip, flex, small soft or large soft patterns. All include the standard assembly.
How is study data retrieved?
Data downloads through the USB connection for review in nVISION data management software. A PC download cable is available in the accessories range.
Can it be used for exercise testing?
Yes. PureSAT processing is tested in motion, and the manufacturer cites stress applications such as the six minute walk test among its uses.
What warranty covers the WristOx2 3150 USB?
Nonin backs the device with a 3-year warranty. The instructions for use state the full terms.
