Description

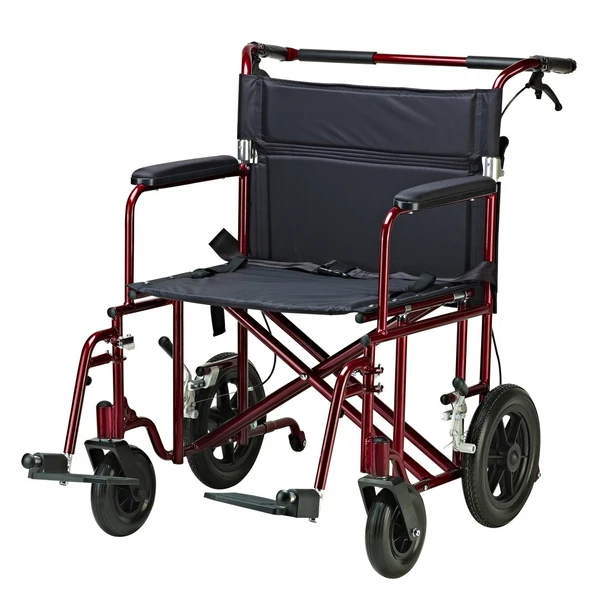

The Drive Bariatric Aluminum Transport Chair solves the usual bariatric trade-off: it carries 450 lb on an aluminum frame that weighs just 33 lb. A 22 in wide seat, an attachable push bar with hand brake levers, anti-tippers, and 12 in rear flat-free wheels make it the attendant's chair for larger riders — strong where it counts, light where it helps, and finished in red.
- 450 lb capacity on a 33 lb aluminum frame
- Attachable push bar with padded grip and hand brake levers
- Anti-tippers included for ramps and inclines
- 12 in rear flat-free wheels; hand locks plus companion-activated locks
- Seat belt included; back folds down; swing-away footrests
Aluminum Strength Without the Steel Weight
Steel bariatric transport chairs ask the attendant to lift 45 to 49 lb of chair before the rider even sits down. This one is aluminum: 33 lb, a full 450 lb rating, and a heavy-duty reinforced nylon seat built for the load. Add the push bar — proper leverage for ramps and longer pushes, with brake levers at the attendant's hands — and it becomes the bariatric transport chair a single caregiver can genuinely run all day.
Features and Benefits
Heavy-Duty Aluminum Construction
- 450 lb on Aluminum – A heavy-duty aluminum frame rated for bariatric riders at two-thirds the weight of steel equivalents.
- 22 in Wide Seat – A genuinely wide 22 x 18 in seat with reinforced heavy-duty nylon upholstery.
- Anti-Tippers Included – Rear anti-tippers fitted for ramp and incline stability, not sold separately.
Attendant Control

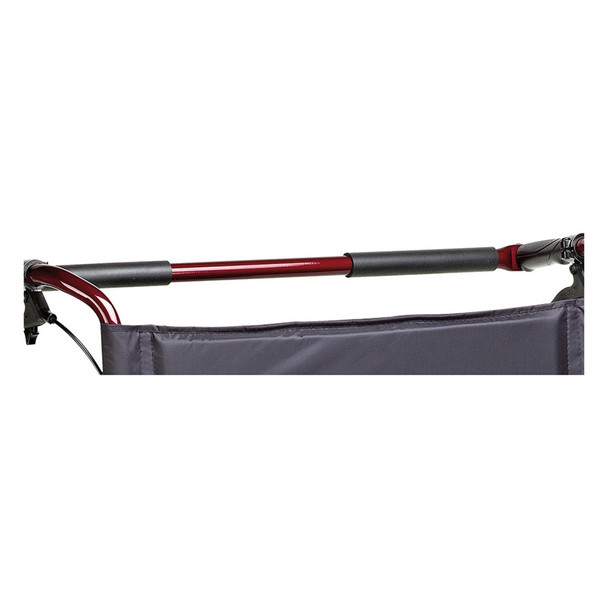

- Push Bar with Hand Brakes – The attachable push bar carries a padded foam grip and hand brake levers, so speed control stays with the attendant on slopes.
- Dual Locking – Hand wheel lock levers plus companion-activated locks — set both before transfers.
- 12 in Rear Flat-Free Wheels – Big wheels for outdoor ground, with tires that cannot puncture or deflate.
Comfort and Storage
- Seat Belt Included – Rider security over thresholds and uneven surfaces.

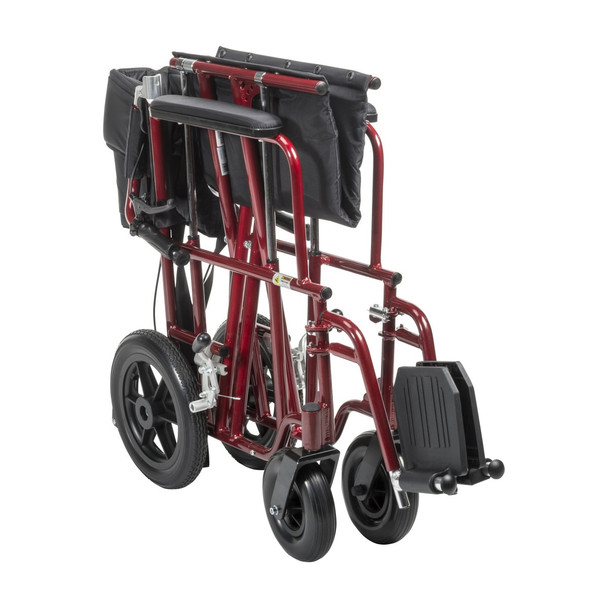

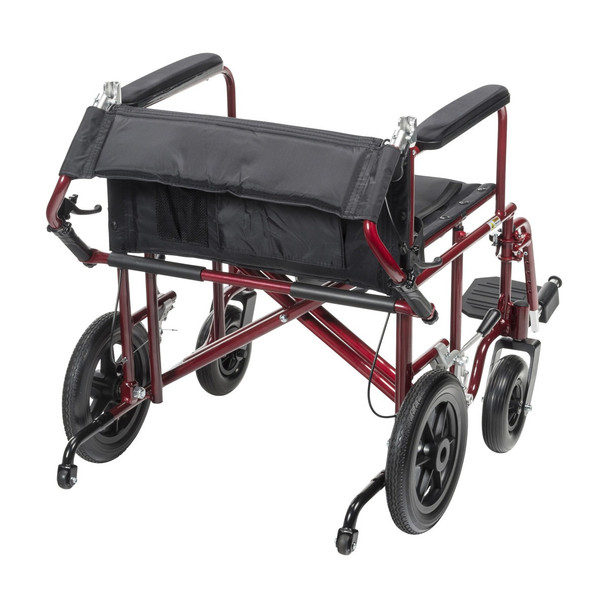

- Folding Back, Swing-Away Footrests – The back folds down and the footrests swing away, so the chair stores and loads like a standard transport chair.
Product Specifications
Dimensions and Weights
- Seat Dimensions: 22 in (55.9 cm) W x 18 in (45.7 cm) D
- Seat-to-Floor Height: 21 in (53.3 cm)
- Back Height: 16 in (40.6 cm)
- Overall Dimensions: 41 in (104.1 cm) L x 30 in (76.2 cm) W x 37.5 in (95.3 cm) H
- Overall Width (open / closed): 30 in (76.2 cm) / 12 in (30.5 cm)
- Product Weight: 33 lb (15 kg)
- Carton Shipping Weight: 39 lb (17.7 kg)
Capacity and Construction
- Weight Capacity: 450 lb (204.1 kg)
- Frame: Aluminum, heavy-duty
- Upholstery: Heavy-duty nylon, reinforced
- HCPCS Code: E1039
- Color: Red
Running Gear
- Rear Wheels: 12 in (30.5 cm), flat-free
- Brakes and Locks: Hand brake levers on push bar; hand wheel locks; companion-activated locks
- Anti-Tippers: Included
- Seat Belt: Included
Warranty and Configuration
- Warranty: Limited lifetime (per Drive)
- Push Bar: Attachable, padded foam grip
- Front Riggings: Swing-away footrests
- Warranty Terms: Defects are covered by repair or replacement at Drive's option; misuse, negligence, and normal wear are excluded (owner's manual).
Shopping the wider range? Compare this chair with our other wheelchairs, browse all mobility aids for transfer and daily-living support, or read our wheelchair buying guide.
Why Attendants Ask for This One by Name
Pushing a bariatric rider is work. The push bar turns body weight into leverage, the hand brakes take the fear out of ramps, and at 33 lb the chair itself never becomes the second load. It is the rare bariatric chair that respects both people in the transaction.
- Leverage, Not Muscle – The push bar changes the pushing geometry on slopes and long halls.
- Brakes at the Hands – Hand levers where the attendant already grips — no reaching for wheel locks downhill.
- Light to Load – 33 lb into a trunk or van, even after a long day.
- Complete in the Box – Anti-tippers, belt, push bar, footrests — no accessory hunt.
Manuals and Troubleshooting Guides
Frequently Asked Questions
Is this chair blue or red?
Red. Some distributor listings title it blue, but Drive's own product title, specification sheet, and the -R model suffix all specify red — and red is what ships.
What is the weight capacity, and what does the chair weigh?
450 lb capacity; the chair itself weighs 33 lb thanks to its aluminum frame.
How is this different from the 17 in aluminum transport chair?
This is a separate heavy-duty model: wider 22 in seat, 450 lb rating instead of 300 lb, 12 in rear wheels instead of 8 in, plus a push bar with hand brakes and anti-tippers the smaller chair does not have.
Can the rider propel it?
No — it is attendant-propelled. The attendant works the hand brakes on the push bar and sets the wheel locks; engage the locks before every transfer.
How do I maintain it?
Per the owner's manual (doc 970-1): inspect the wheels monthly and correct axle side-play at the lock nut, wipe solid tires with a damp cloth, clean upholstery with mild soap, and keep footrest plates at least 2-1/2 in off the ground with the rider seated.
What warranty does it carry?
Drive lists a limited lifetime warranty for this model.
