Description

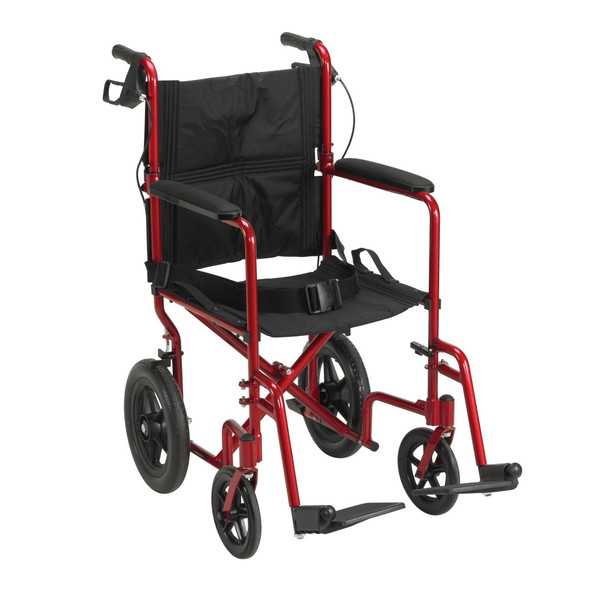

The Drive Expedition Aluminum Transport Chair is the travel-ready transport chair: 19 lb of aluminum that folds flat, rides on 12 in rear wheels, and gives the attendant both a loop hand brake and companion wheel locks. A permanently attached seat belt (per the owner's manual, it is not to be removed) and a 19 in seat round out a chair built for outings, appointments, and trips — in blue or red.
- 19 lb aluminum frame that folds flat to 10.75 in wide
- 12 in rear flat-free wheels for curbs and outdoor ground
- Loop lock hand brake on the push handles, plus companion-activated wheel locks
- Seat belt included — permanently attached by design
- 300 lb capacity on a 19 in seat
The Transport Chair That Travels Like Luggage
Most transport chairs fold; the Expedition folds flat — 10.75 in wide with the back down, sliding behind a seat or into a packed trunk — and its back lock clicks engaged automatically when raised, so setup is one motion. The 12 in rear wheels matter more than they sound: they roll over the expansion joints, gravel edges, and door thresholds where 8 in wheels stall and jar the rider. For a chair whose whole purpose is going places, those are the two features that decide whether it gets taken along.
Features and Benefits
Folds Flat, Sets Up Fast
- Fold-Flat Frame – Pull the locks on the chair back simultaneously and the back folds down flat; raise it and the back lock engages on its own.
- 19 lb Aluminum – One-person lifting into trunks, closets, and overhead-tight storage.
- Compact Footprint – 38 x 10.75 x 29 in folded.
Attendant Braking, Twice Over
- Loop Lock Hand Brake – A loop brake on the push handles for speed control on slopes, worked by the attendant's hands.
- Companion-Activated Wheel Locks – Parking locks for transfers — set them every time, alongside the loop brake.
- 12 in Rear Flat-Free Wheels – Outdoor-capable rear wheels that cannot go flat mid-outing.
Rider Security
- Seat Belt Included – Permanently attached per the owner's manual — do not remove it; it is part of the chair's safety design.
- 19 in Seat, 300 lb – A full-size seat and rating in a travel-weight chair.
- Swing-Away Footrests – Swing aside for transfers and close storage.
Product Specifications
Dimensions and Weights
- Seat Dimensions: 19 in (48.3 cm) W x 16 in (40.6 cm) D
- Seat-to-Floor Height: 19 in (48.3 cm)
- Back Height: 18 in (45.7 cm)
- Overall Dimensions: 38 in (96.5 cm) L x 22 in (55.9 cm) W x 38 in (96.5 cm) H, with riggings
- Overall Width (open / closed): 22 in (55.9 cm) / 10.75 in (27.3 cm)
- Folded Dimensions: 38 in (96.5 cm) x 10.75 in (27.3 cm) x 29 in (73.7 cm)
- Product Weight: 19 lb (8.6 kg)
- Carton Shipping Weight: 24 lb (10.9 kg)
Capacity and Construction
- Weight Capacity: 300 lb (136.1 kg)
- Frame: Aluminum, fold-flat design
- HCPCS Code: E1038
Running Gear
- Rear Wheels: 12 in (30.5 cm), flat-free
- Brakes and Locks: Loop lock hand brake; companion-activated wheel locks
- Seat Belt: Included, permanently attached
Warranty and Configuration
- Warranty: Limited lifetime (per Drive)
- Front Riggings: Swing-away footrests
- Colors: Blue, Red
- Warranty Terms: Defects are covered by repair or replacement at Drive's option; misuse, negligence, and normal wear are excluded (owner's manual).
Shopping the wider range? Compare this chair with our other wheelchairs, browse all mobility aids for transfer and daily-living support, or read our wheelchair buying guide.
Why the Expedition Earns Its Name
Expedition gear is judged by one test: does it come along? Flat fold, 19 lb, real outdoor wheels, and brakes an attendant can work on a hill — the Expedition passes the test that garage-bound chairs fail.
- Flat Means Packed – 10.75 in folded width leaves room for everything else the trip needs.
- One-Motion Setup – Raise the back and the lock engages itself.
- Outdoor Wheels – 12 in rears for the ground between the car and the door.
- Safety Built In – Belt fitted permanently, two braking systems, no add-ons to forget.
Manuals and Troubleshooting Guides
Frequently Asked Questions
How is this different from the 17 in Drive aluminum transport chair?
The Expedition has a wider 19 in seat, 12 in rear wheels instead of 8 in wheels all around, a loop hand brake in addition to companion locks, a fold-flat back design, and a published HCPCS code (E1038). The 17 in chair is the simpler, casted-hinge folder.
What does "folds flat" mean here?
The back folds down by pulling the locks on the chair back at the same time, bringing the folded width to 10.75 in. When the back is raised again, its lock engages automatically.
Can the seat belt be removed?
No. Per the owner's manual, the belt is permanently attached and should not be removed.
Can the rider propel it?
No — attendant-propelled. The attendant works the loop brake for moving control and sets the companion locks when stopped; engage the locks before transfers.
How do I maintain it?
Per the owner's manual (doc 967-1): inspect wheels monthly and correct axle side-play at the lock nut, wipe tires with a damp cloth, clean upholstery with mild soap, and keep footrest plates at least 2-1/2 in off the ground with the rider seated.
What warranty does it carry?
Drive lists a limited lifetime warranty for this model.
