Description

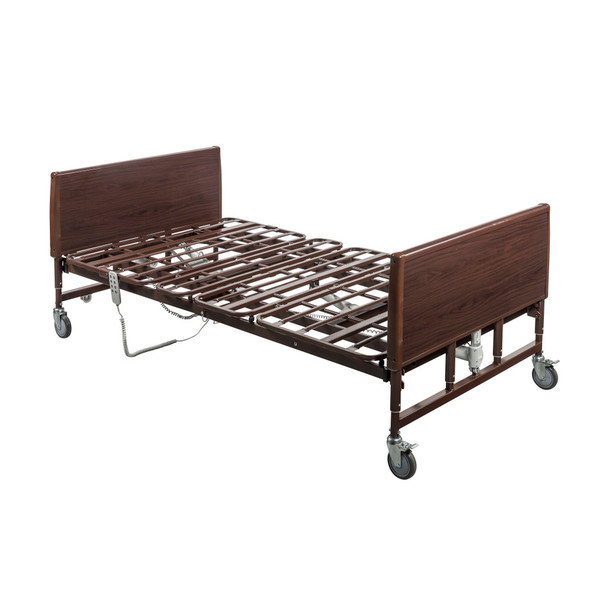

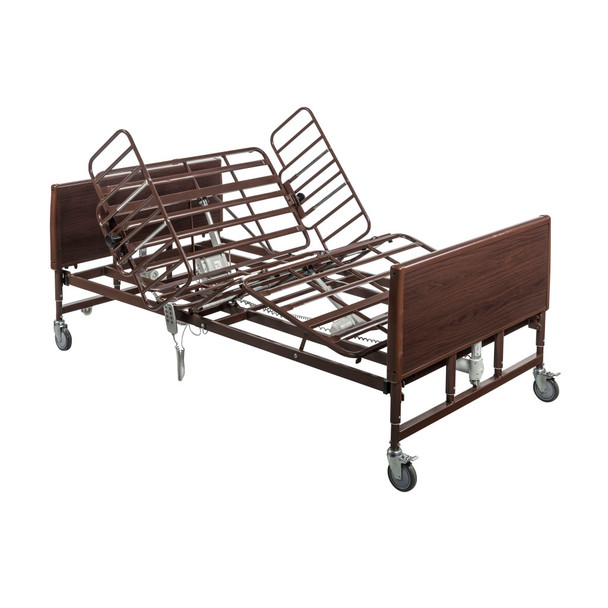

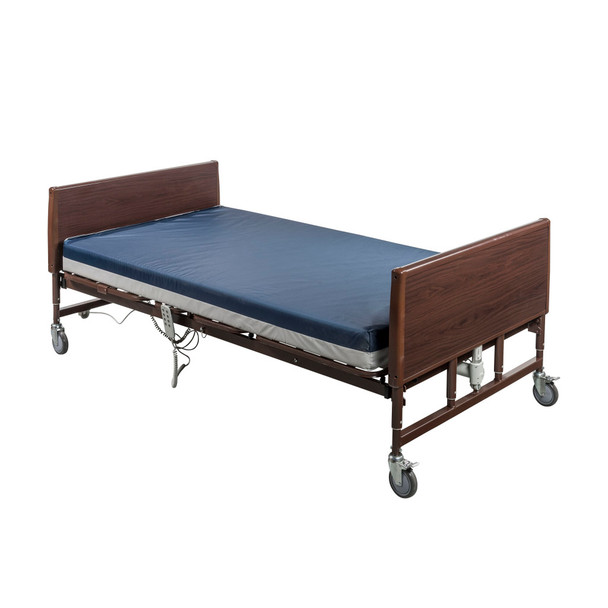

The Drive Lightweight Bariatric Bed is a full-electric bariatric homecare bed in widths of 42, 48 and 54 inches, built on an ultra-lightweight frame that one person can set up without links or tools. A dual motor assembly drives the head section and the bed height from the glow-in-the-dark pendant.
- Full electric: head section and bed height adjust by motor from the pendant
- Slat deck with no-sag support in 42, 48 and 54 in widths, easy to clean
- Ultra-lightweight frame — up to 100 lb lighter than typical bariatric beds
- Glow-in-the-dark pendant with LED power and lockout indicators
- 5 in casters, two locking and two unlocking, for moves and positioning
- Available bare or with half rails — choose your width and rail configuration on this page; mattress sold separately
Full-Electric Bariatric Support at a Lighter Weight
The Drive Lightweight Bariatric Full Electric Bed pairs a square tube steel frame and slat deck with scratch-resistant wood-grain bed ends. The self-contained, UL-approved motor is removable with the patient still in bed, and the bed ends carry the hi-lo motors for the height adjustment. The bed meets IEC 60601-2-52, 60601-1, 60601-1-2 and 60601-1-11, and its rail accessories meet FDA and ASTM entrapment guidelines.
Features and Benefits
Electric Positioning
- Dual motor assembly – drives the head section and the frame height adjustment
- Glow-in-the-dark pendant – large pendant with LED power and lockout indicators
- Removable motor – the self-contained, UL-approved motor comes off with the patient in bed
Frame and Deck
- Ultra-lightweight frame – sets up by one individual with no links and no tools
- Slat deck – no-sag mattress support that wipes clean
- Wood-grain bed ends – scratch-resistant panels with a furniture look
- 5 in casters – two locking and two unlocking casters for positioning
Product Specifications
Capacity and Dimensions
- Safe Working Load: 600 lb
- Width: 42 in, 48 in or 54 in (choose on this page)
- Length: 80 in
Electrical, Safety and Warranty
- Motor: dual motor assembly, self-contained, UL approved
- Battery Backup: none built in — a battery pack accessory (15302LWB) is available separately
- Casters: 5 in (2 locking, 2 unlocking)
- Color: Brown
- Safety Standards: meets IEC 60601-2-52, 60601-1, 60601-1-2 and 60601-1-11
- HCPCS: E0301 for the 42 in bed; E0302 for the 48 in and 54 in beds; half-rail configurations carry no separate HCPCS
- Warranty: Limited Lifetime on welds and frame | 5 years on motor and hand control | 1 year on all other parts and components
Pair the bed with one of our mattresses, compare other hospital beds, or browse the wider medical furniture range at MedicalEx.
Why Choose the Drive Lightweight Bariatric Bed?
Bariatric beds are usually the hardest beds to get into a home. This one is built to change that: the lightweight frame sets up by one person with no tools, while the dual motors, slat deck and 600 lb safe working load keep the capability a bariatric bed is bought for. With three widths and an optional half-rail configuration on this page, it is the clean starting point for the exact setup you need.
- Bariatric Capacity Without the Bariatric Moving Problem – up to 100 lb lighter than typical bariatric beds – one person can deliver and set it up
- Three Widths on One Page – 42, 48 and 54 in, bare or with half rails – fitted here, no separate listings
- A Deck With Nothing to Sag – slat support that wipes clean – no spring fatigue over years of use
- Controls You Can Find at Night – a glow pendant with power and lockout indicators – adjustments without waking the house
Manuals and Troubleshooting Guides
Frequently Asked Questions
Is a mattress or rails included?
The mattress is never included. Rails depend on the configuration you choose on this page: pick the Half Rails option and Drive's half rails for this frame (15021BV-LW) are included; the None option ships as the bare bed.
Which adjustments are motorized?
Both the head section and the overall bed height are driven by the dual motor assembly from the hand pendant— this is a full-electric bed.
Is there a battery backup?
No battery backup is built in. A battery pack accessory made for this bed family (15302LWB) is available separately.
How much weight can the bed hold?
Drive rates this bed family at a safe working load capacity of 600 lb.
Can one person set this bed up?
Yes. The ultra-lightweight frame is designed to be set up by one individual, with no links and no tools.
What size mattress does it take?
A bariatric mattress in the same width as the bed you choose — 42, 48 or 54 in wide by 80 in long. Mattresses are sold separately at MedicalEx.
What does the warranty cover?
Limited Lifetime on welds and the frame, 5 years on the motor and hand control, and 1 year on all other parts and components.
Additional Information
Overall Width: |
42 in, 48 in or 54 in (choose on this page) |
Wheels / Casters: |
5 in (2 locking, 2 unlocking) |
HCPCS Code: |
E0301 for the 42 in bed; E0302 for the 48 in and 54 in beds; half-rail configurations carry no separate HCPCS |
Warranty: |
Limited Lifetime on welds and frame | 5 years on motor and hand control | 1 year on all other parts and components |
