Description

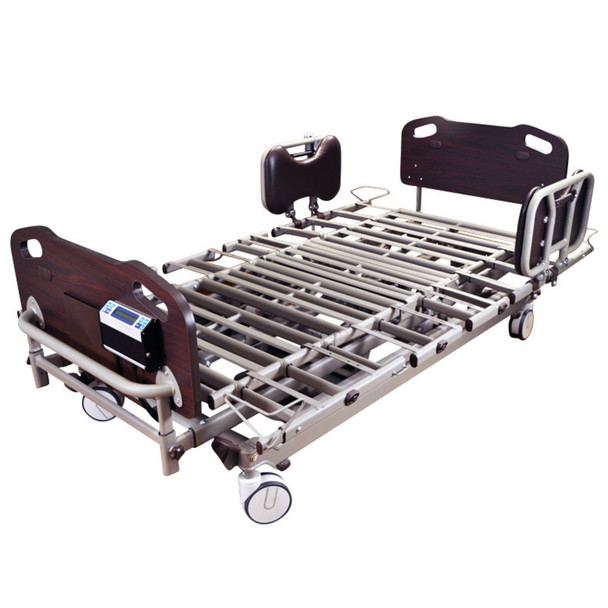

The Drive Prime Plus P2002 Bariatric Bed is a long-term care bed rated for 1,000 lb including the resident, with push-button width expansion built into the frame — one bed covers widths from 39 to 54 inches. Full-electric positioning, chair positions and roll-at-any-height casters make it a facility-grade bed that also serves the largest home-care needs.
- 1,000 lb weight capacity, including the resident
- Built-in push-button width expansion: 39, 42, 48 and 54 in
- Sleep surface lengths of 80, 84 and 88 in with adjustable mattress retainer
- Height adjusts from a 19 in low to a 32 in working height
- Comfort Chair and Cardiac Chair positioning from the hand pendant
- One-button drop-down padded assist rails are standard equipment
One Bed, Four Widths, Facility-Grade Positioning
The Drive Prime Plus P2002 adjusts its width at the push of a button, so a facility — or a family planning ahead — does not need a different bed as needs change. The hand pendant controls head, foot and contour positioning plus overall height, and clips onto the bed rail where it is always in reach. Four heavy-duty Euro-style casters steer and lock, and the bed can roll at any height, with an adjustable wall saver protecting the room. The all-steel frame uses a no-sag slat deck.
Features and Benefits
Capacity and Expansion
- 1,000 lb capacity – rated including the resident, for true bariatric long-term care
- Push-button width expansion – 39, 42, 48 and 54 in widths built into the frame, not a bolt-on kit
- Three sleep lengths – 80, 84 and 88 in with an adjustable mattress retainer
- 19 to 32 in height range – a low transfer height and a full working height for caregivers
Positioning and Mobility
- Full-electric pendant control – head, foot, contour and height, with a clip-on pendant mount
- Chair positioning – Variable Comfort Chair and Cardiac Chair positions built in
- Edema foot ratchet – raises the feet while the lower leg section stays supported
- Roll at any height – four Euro-style steer-and-lock casters move the bed at working height
- Padded assist rails included – one-button drop-down padded assist rails are standard
Product Specifications
Capacity and Dimensions
- Weight Capacity: 1,000 lb, including the resident
- Width: expands to 39 in, 42 in, 48 in and 54 in (built-in, push-button)
- Sleep Surface Lengths: 80 in, 84 in and 88 in
- Height Range: 19 in low height to 32 in high working height
Electrical, Safety and Warranty
- Deck Type: no-sag slat deck, all-steel frame
- Casters: 4 heavy-duty Euro-style roll-at-any-height steer-and-lock casters
- Certifications: Intertek ETL Classified; CAN/CSA C22.2 No. 60601-1 and 60601-2-52; ANSI/AAMI ES60601-1; IEC 60601-1 and 60601-2-52; IP54; CE
- Standard Equipment: one-button drop-down padded assist rails
- Not Included: mattress, bed ends, embedded staff control, trapeze, battery backup and integral weigh scale are optional accessories sold separately
- Warranty: 15 years on frame | Limited Lifetime on welds | 3 years on electronics
Pair the bed with one of our mattresses, compare other hospital beds, or browse the wider medical furniture range at MedicalEx.
Why Choose the Drive Prime Plus P2002 Bariatric Bed?
Most bariatric beds fix you to one width. The P2002 covers four, at a 1,000 lb rating, with the chair positions and roll-at-any-height mobility that long-term care actually uses day to day. For a facility it is one bed to stock instead of several; for a home it is the bed that does not need replacing when needs grow. MedicalEx supplies it with its standard padded assist rails; bed ends and the other options can be added to match the room.
- One Bed Instead of Four – push-button width changes cover 39 to 54 in – a facility stocks one model for every bariatric resident
- Chair Positions From the Pendant – Comfort Chair and Cardiac Chair at a button press – residents sit up properly for meals and care
- Moves at Working Height – roll-at-any-height casters with steer and lock – repositioning never waits for the bed to come down
- A Rating That Includes the Resident – 1,000 lb total capacity – the heaviest patients are covered with margin
Manuals and Troubleshooting Guides
Frequently Asked Questions
Is a mattress or bed ends included?
No mattress is included, and the bed ends are optional accessories (oversized, with a bumper bar, in five wood-grain laminate colors). The bed does include its standard one-button drop-down padded assist rails.
How does the width expansion work?
It is built into the frame and works at the push of a button — the bed adjusts between 39, 42, 48 and 54 inches wide with no expansion kit to buy or install.
Does this bed have a built-in scale?
No. The integral weigh scale is a factory option on the separate P2002-WS configuration. This P2002 does not include a scale.
Can it do Trendelenburg positioning?
Trendelenburg and Reverse Trendelenburg are available with the optional embedded staff control. The standard pendant provides head, foot, contour and height adjustment, plus Variable Comfort Chair and Cardiac Chair positioning.
How much weight can the bed hold?
1,000 lb, and that rating includes the resident.
Can the bed be moved while raised?
Yes. The four heavy-duty Euro-style casters are steer-and-lock and roll at any height, and an adjustable wall saver helps protect walls during moves.
What does the warranty cover?
15 years on the frame, Limited Lifetime on welds, and 3 years on the electronics.
Additional Information
Overall Width: |
expands to 39 in, 42 in, 48 in and 54 in (built-in, push-button) |
Weight Capacity: |
1,000 lb, including the resident |
Height Range: |
19 in low height to 32 in high working height |
Wheels / Casters: |
4 heavy-duty Euro-style roll-at-any-height steer-and-lock casters |
Warranty: |
15 years on frame | Limited Lifetime on welds | 3 years on electronics |
