Description

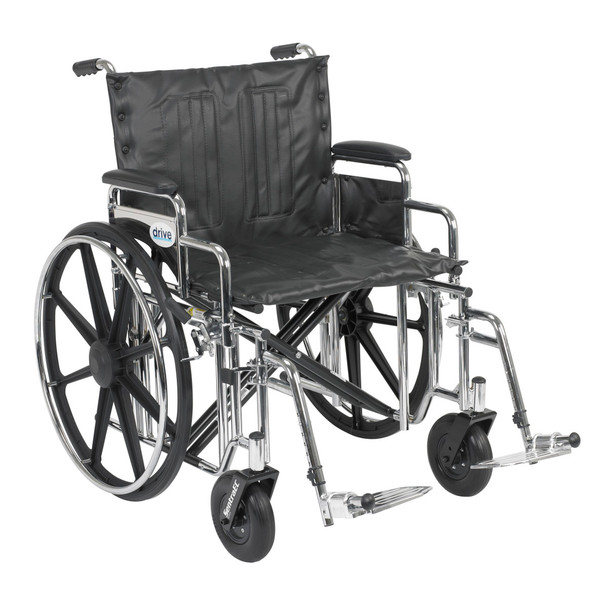

The Drive Sentra HD Bariatric Wheelchair is Drive's 500 lb extra-heavy-duty chair: a reinforced carbon steel frame in a silver vein finish, detachable desk arms, and a choice of swing-away footrests or elevating leg rests across 20, 22 and 24 inch seat widths.
- 500 lb capacity at every width – one family rating for the 20, 22 and 24 in seats
- Reinforced carbon steel frame – steel gussets at every weight-bearing point, with reinforced side frame, caster journals and dual cross bars
- Dual-position front end – adjustable front fork and front frame positions for the fit you need
- Desk arms throughout – detachable padded desk arms on every configuration
Built Heavier Than the Standard Sentra
The Sentra HD is a separate model line from the Sentra EC: where the EC is rated to 450 lb, the HD carries a single 500 lb rating across all three seat widths. The frame is carbon steel with a silver vein finish, reinforced where a bariatric chair takes its stress — gussets at the weight-bearing points, a reinforced side frame and caster journals, and dual cross bars. Upholstery is heavy-gauge reinforced naugahyde, the wheels are composite Mag-style with solid rubber tires, and precision sealed bearings front and rear keep it rolling smoothly. A carry pocket on the backrest is standard.
Features and Benefits
Frame and Strength
- Carbon steel frame, silver vein finish – a durable powder-style finish over a reinforced steel frame
- Reinforced at the load points – steel gussets at all weight-bearing points, reinforced side frame, caster journals and dual cross bars
- 500 lb capacity – the same rating at 20, 22 and 24 in seat widths
Fit and Everyday Use
- Detachable desk arms – padded armrests that release with a spring button for transfers and close table access
- Dual-position front fork and frame – two-position adjustability at the front end
- Tool-free riggings – swing-away footrests or elevating leg rests, both adjustable in length without tools
- Push-to-lock wheel locks – with precision sealed wheel bearings front and rear
- Carry pocket – built into the backrest for everyday items
Product Specifications
Frame and Upholstery
- Frame: Carbon steel, silver vein finish, reinforced gussets and dual cross bars
- Upholstery: Heavy-gauge reinforced naugahyde
- Wheels: Composite Mag-style with solid rubber tires
- Arms: Detachable padded desk arms
Dimensions and Capacities
- Weight capacity: 500 lb (all widths)
- Seat sizes: 20 × 18 in, 22 × 18 in, 24 × 18 in (W × D)
- Seat-to-floor height: 19–21 in
- Overall dimensions: 42 × 29 × 37 in (20 in), 42 × 31 × 37 in (22 in), 42 × 32.5 × 37 in (24 in) (L × W × H)
- Folded dimensions: 42 × 13 × 37 in (L × W × H)
- Back height: 18 in
- Product weights: 54 lb (20 in), 56 lb (22 in), 66.25 lb (24 in)
- HCPCS: K0007
Explore more wheelchairs and mobility aids at MedicalEx, and read the wheelchair buying guide before you order.
Why Choose the Sentra HD?
It is the step up from the standard Sentra: a 500 lb rating that does not shrink as the seat gets wider, a reinforced frame with dual cross bars, and desk arms on every configuration — with Drive's Limited Lifetime warranty behind the frame.
Manuals and Troubleshooting Guides
Frequently Asked Questions
How is the Sentra HD different from the Sentra EC?
They are different model lines. The Sentra HD is rated to 500 lb (the EC to 450 lb), uses a silver vein carbon steel frame with a dual-position front fork and front frame, and comes with desk arms only. Capacities and parts are not interchangeable between the two lines.
Is there a full-arm version?
No — Drive builds this family with detachable desk arms only, on every width and rigging configuration.
Swing-away footrests or elevating leg rests?
Swing-away footrests suit most users and swing aside for transfers. Elevating leg rests raise and extend the legs — choose them when a clinician recommends leg elevation or the user cannot keep knees bent comfortably. Both adjust in length without tools, with the foot plate kept at least 2-1/2 in off the ground.
How do I adjust the wheel locks?
Per Drive's owner's manual, a correctly adjusted lock embeds its shoe at least 1/8 in into the tire: loosen the nut on the carriage bolt, slide the clamp toward the rear wheel with the handle engaged, retighten, and test the locking action before use. Always engage both locks before transfers.
What upkeep does it need?
Wipe metal parts down weekly with a clean soft cloth and dry the chair after any moisture exposure. The solid rubber tires need only an occasional damp-cloth cleaning; check the rear wheels monthly for tightness, and lubricate the caster stem and wheel bearings occasionally per the owner's manual.
What warranty does it carry?
Drive's Limited Lifetime warranty covers defects in materials and workmanship for the lifetime of the original consumer purchaser, with repair or replacement at Drive's option. Owner misuse, negligence, normal wear, and non-durable components such as rubber accessories, casters and grips are excluded.
Can it be used as a seat in a vehicle?
No. Drive states this wheelchair is not approved as a seat in any vehicle — always transfer to the vehicle manufacturer's approved seat for transport.
